Precision CNC Milled 1045 Mild Steel Cavity Connection Valve with High Sealing Performance

Project Overview

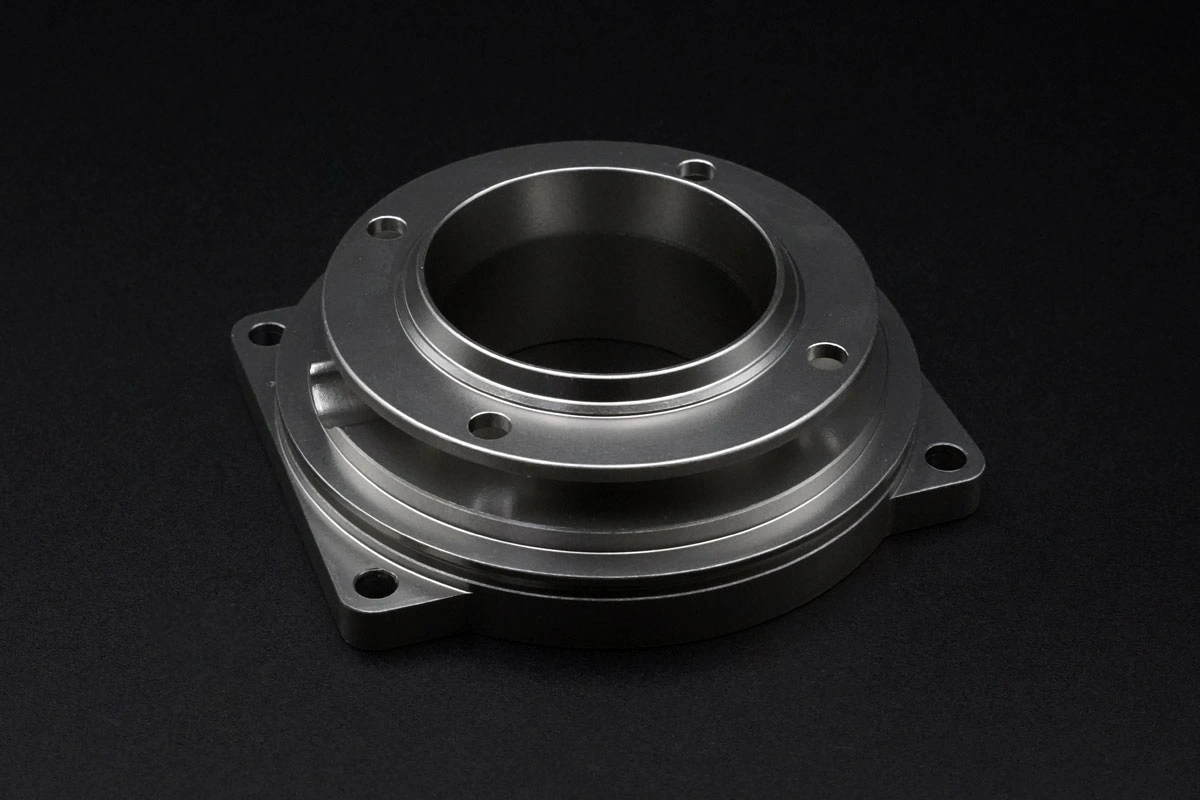

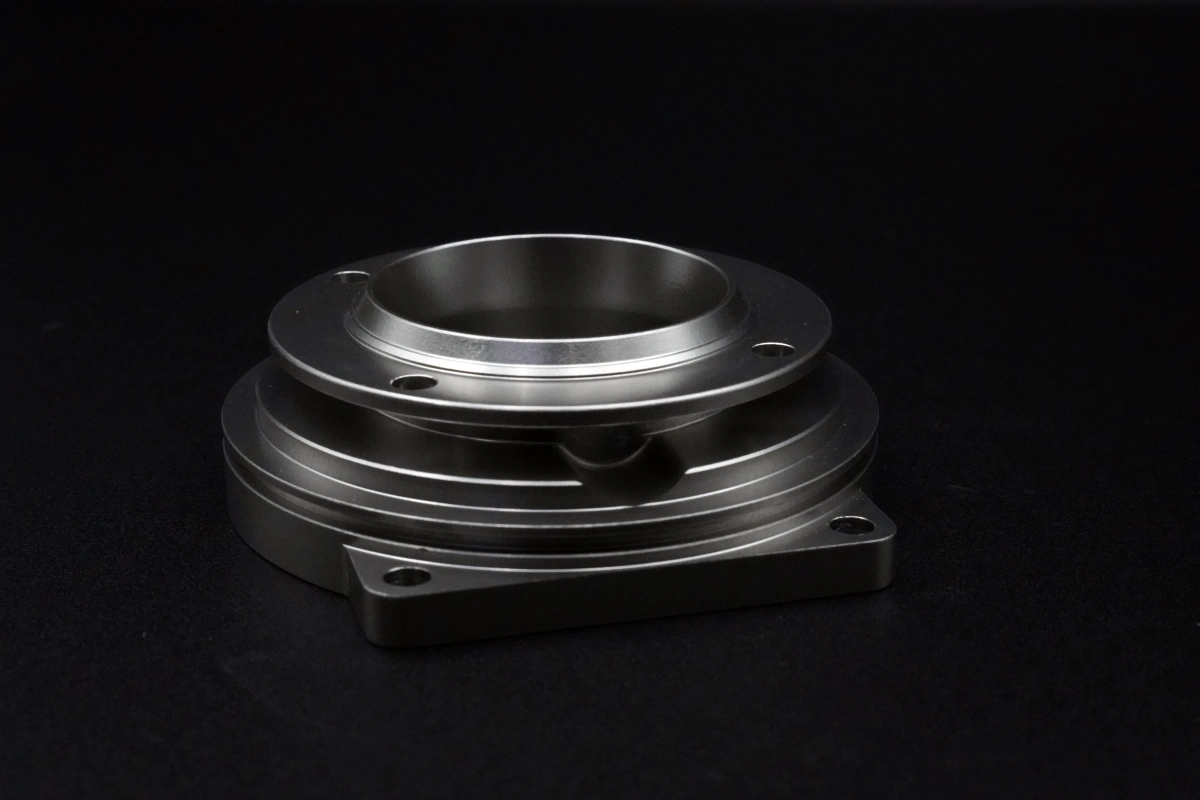

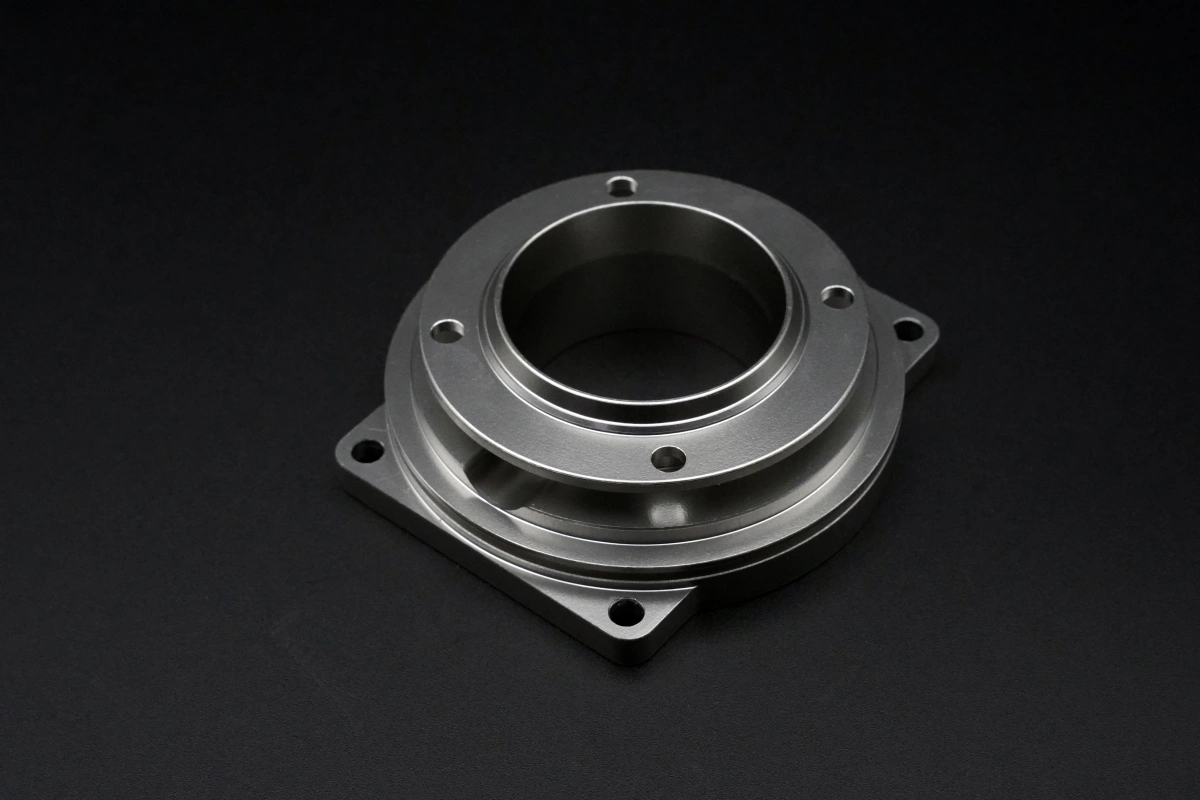

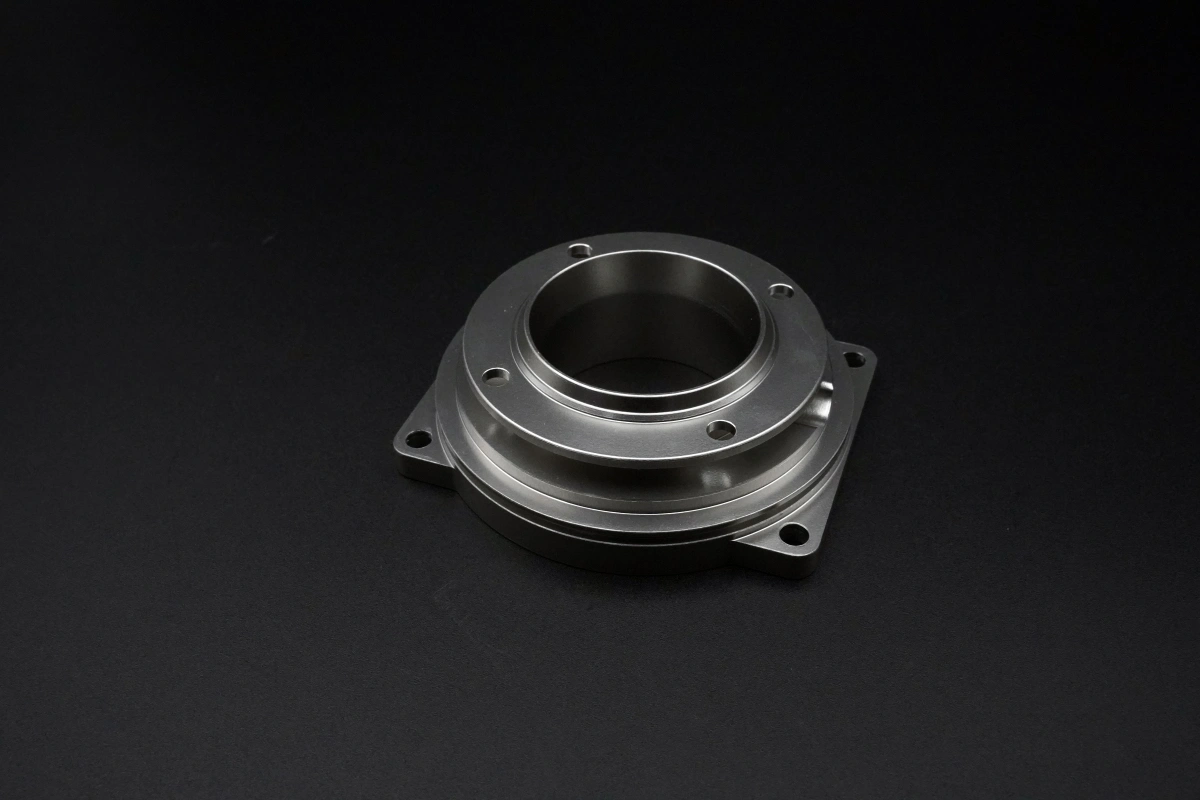

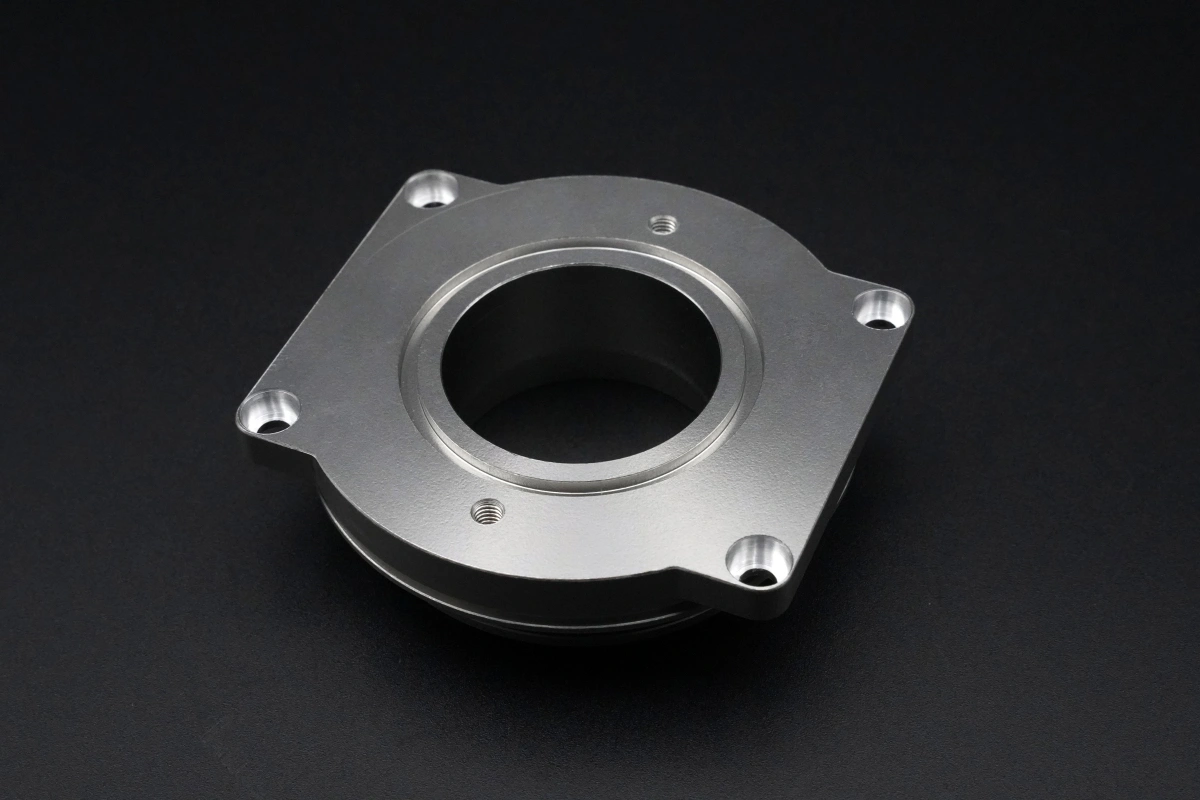

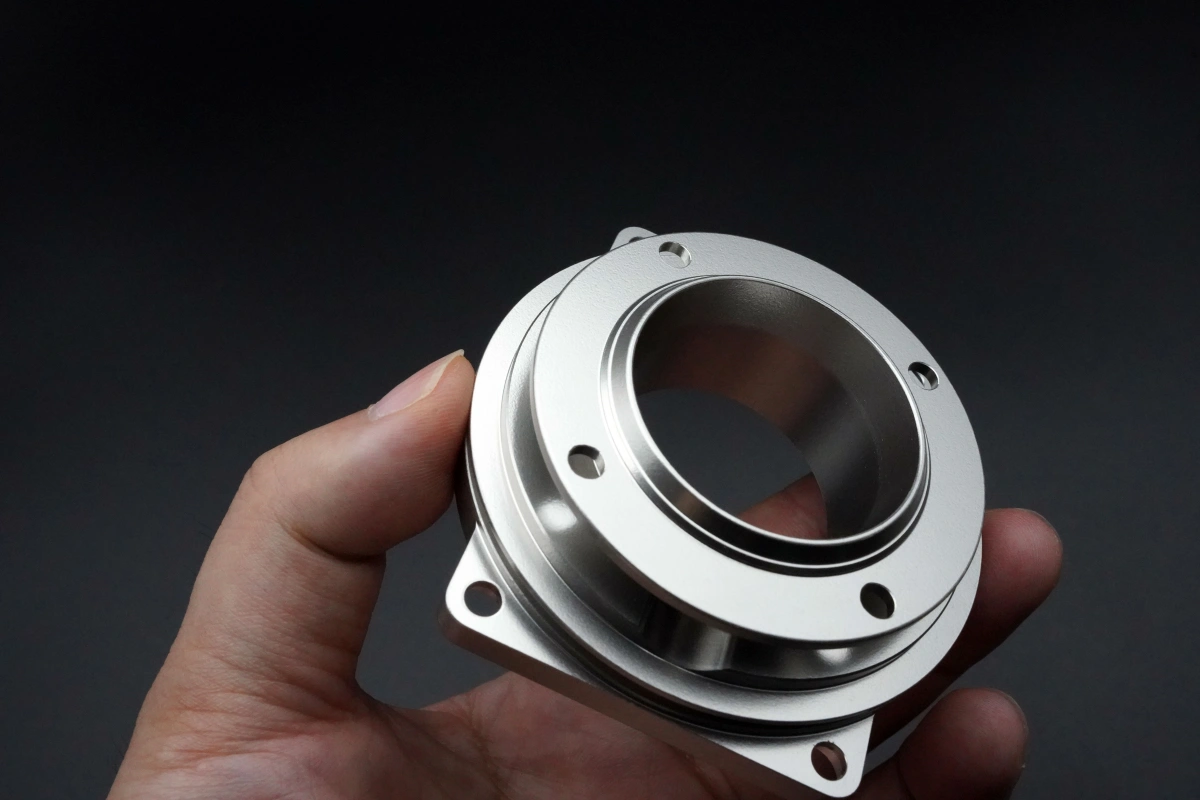

This project involved the precision CNC milling of a cavity connection valve manufactured from Mild Steel 1045, specifically designed for laser equipment applications. The component required specialized cleaning treatment and exceptional sealing capabilities to ensure reliable performance in critical laser systems where airtight integrity is paramount.

Core Parameters

Design Advantages

• Exceptional Sealing Performance: Precision machined to achieve superior airtight integrity in laser systems
• High Structural Strength: 1045 mild steel provides excellent mechanical properties and durability
• Contamination-Free Surface: Specialized cleaning treatment ensures particle-free operation in sensitive laser environments
• Precision Fit: CNC milling guarantees exact dimensional accuracy for perfect mating with other components

Process Control

Comprehensive quality control protocols were implemented throughout the manufacturing process, including Precision machining monitoring, surface cleanliness verification, and rigorous sealing performance testing. Each valve underwent helium leak testing and dimensional inspection to ensure zero leakage and perfect fitment in laser cavity systems.

Quality Reports

Full quality documentation includes material certification, surface cleanliness reports, leak test results, and dimensional inspection records. All manufacturing processes comply with ISO 9001 standards and specific laser industry requirements for sealing components.
