High-Precision CNC Milled 6061-T6 Laser Device Cavity with Two-Tone Anodizing | ISO2768-F Sealing Grade

Project Overview

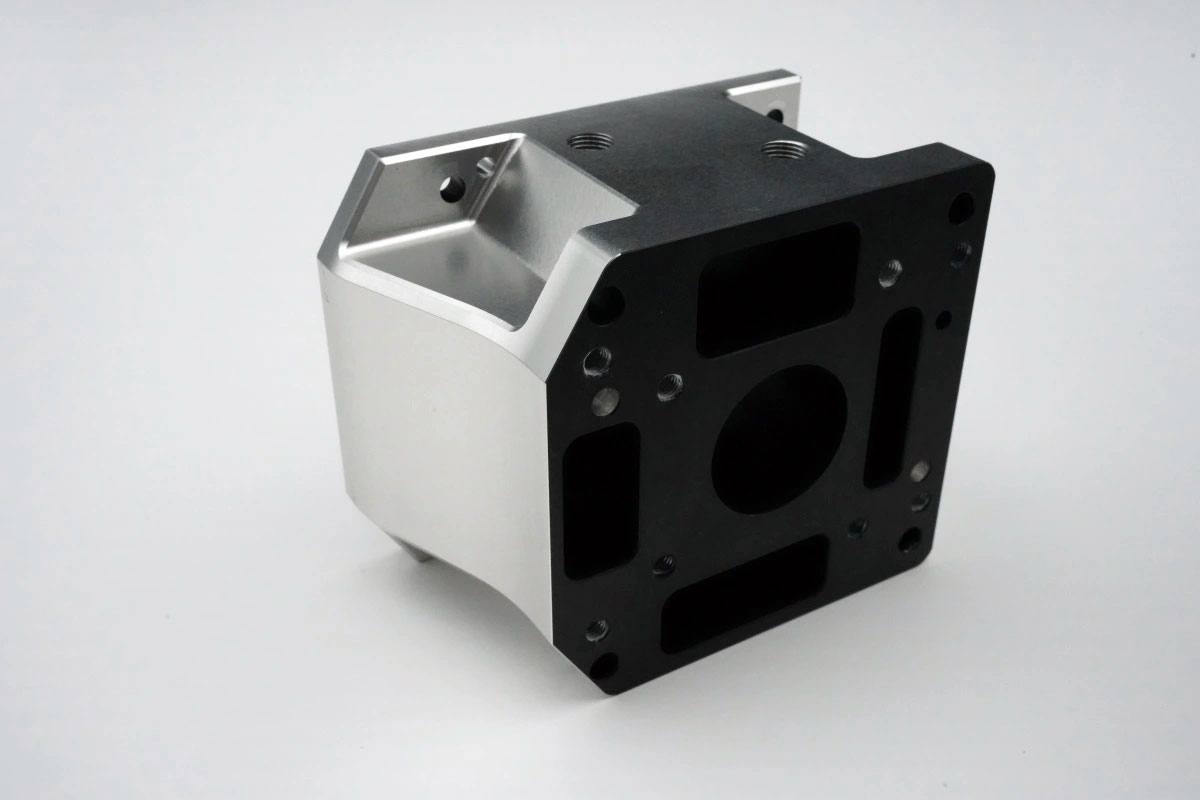

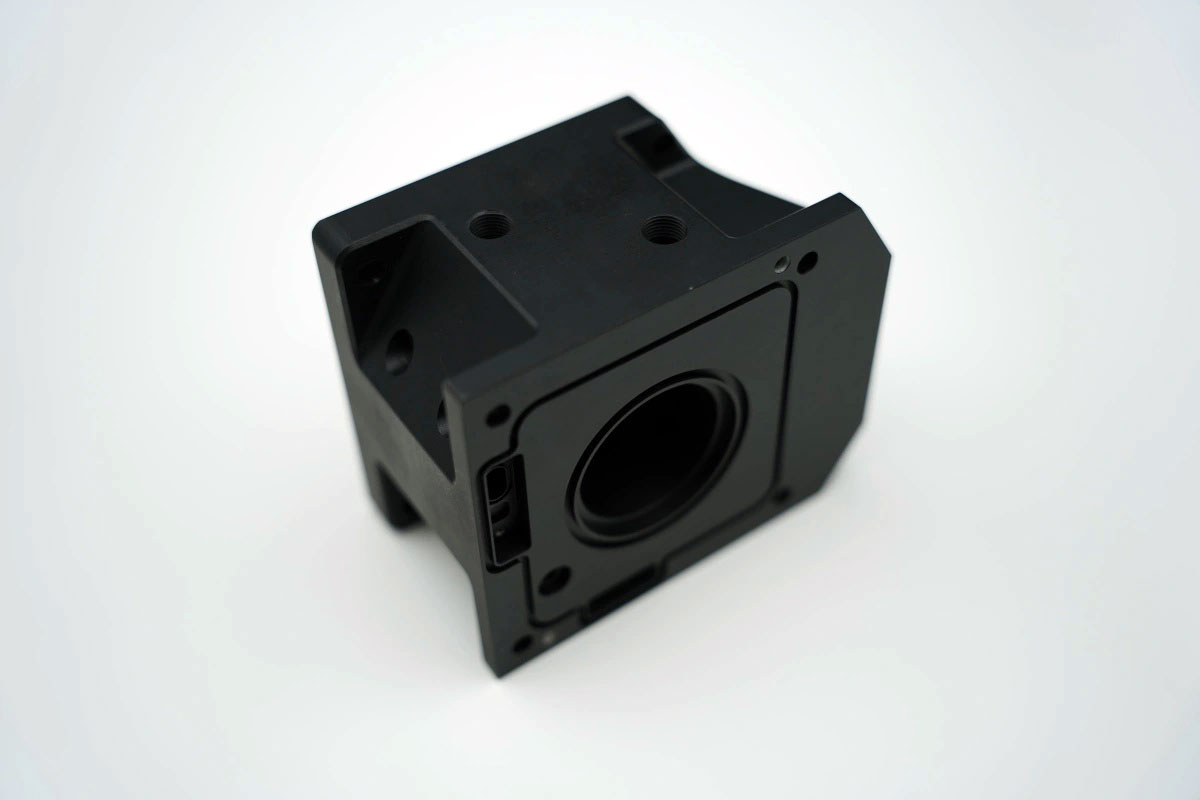

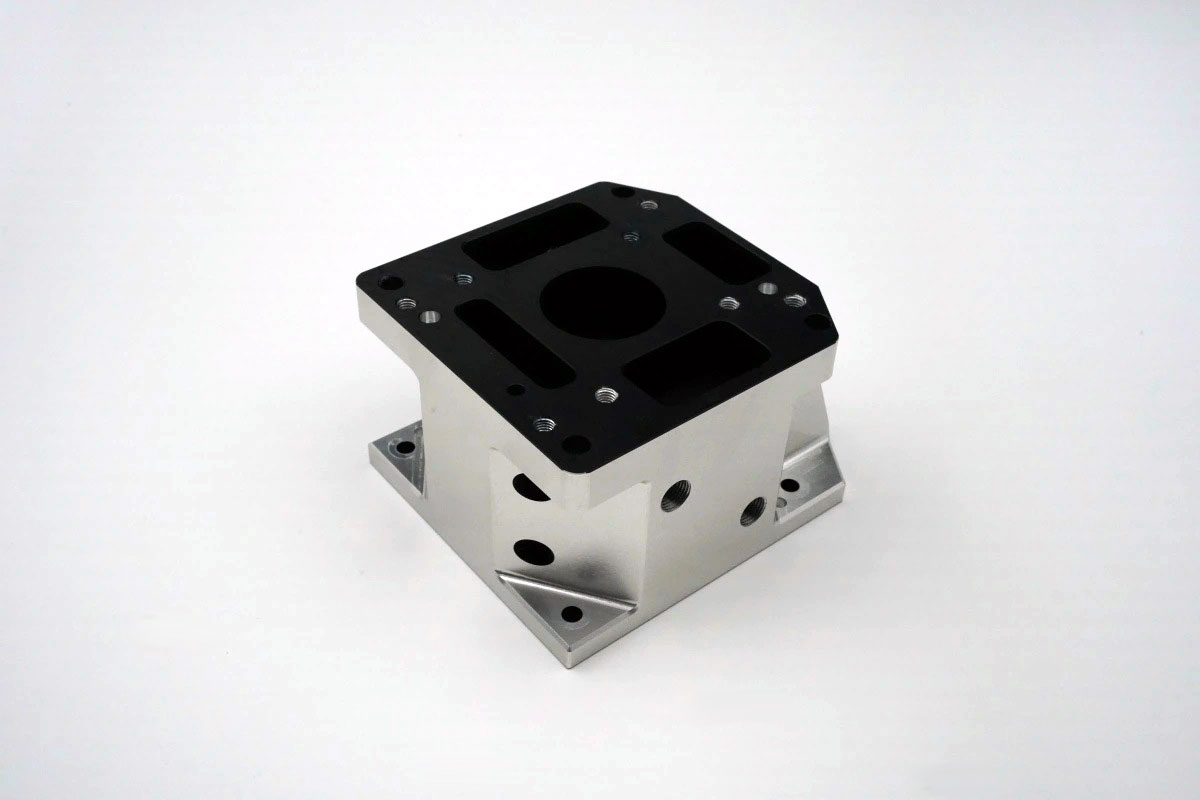

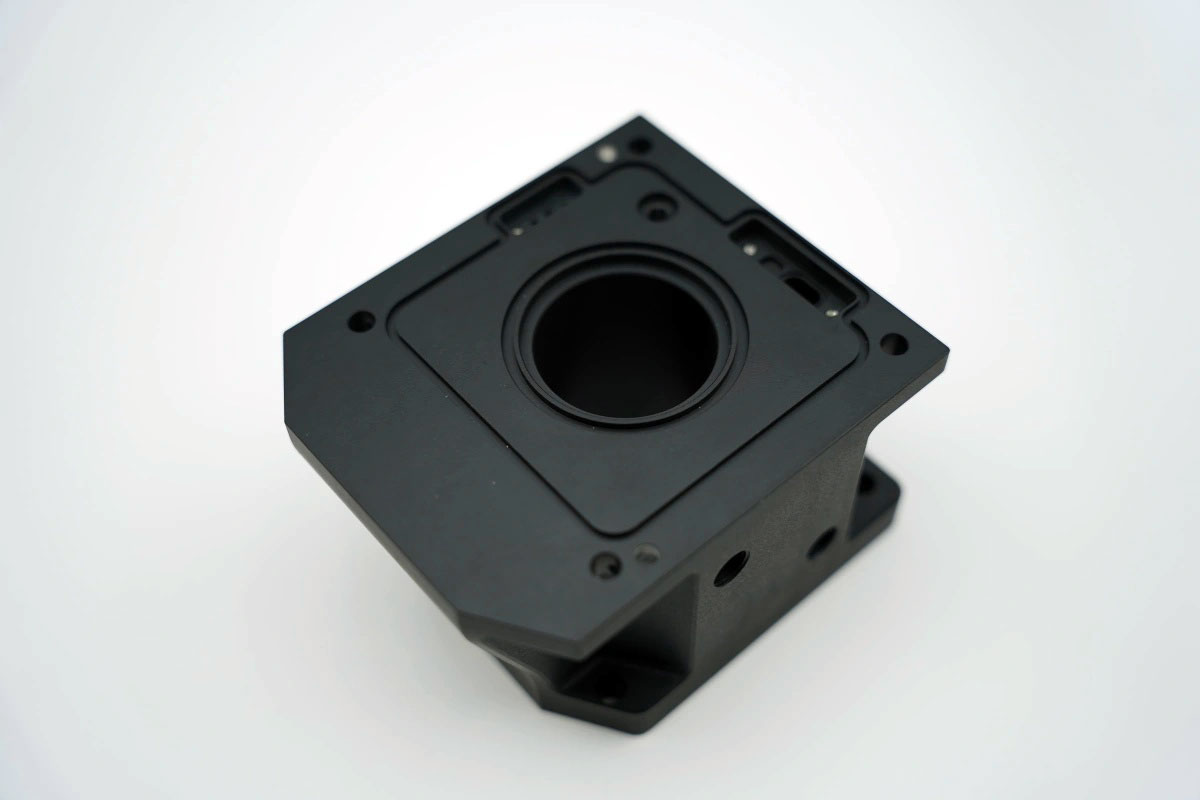

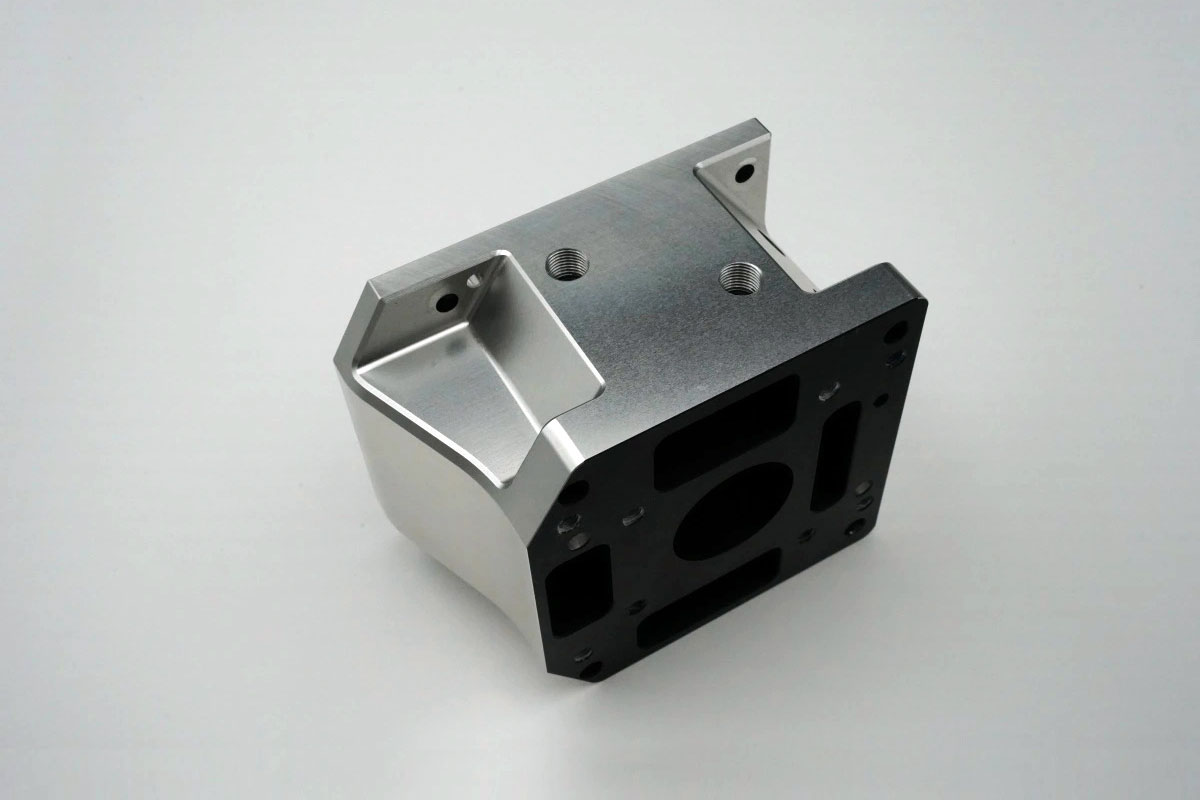

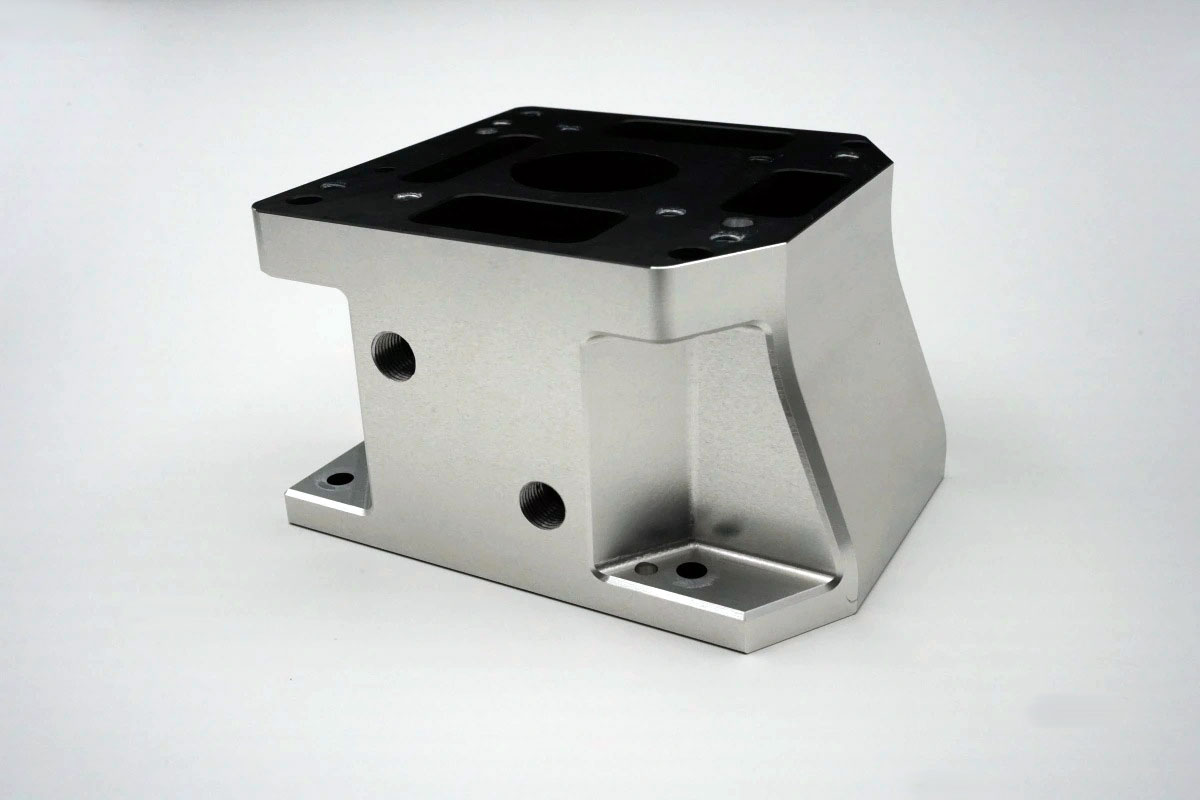

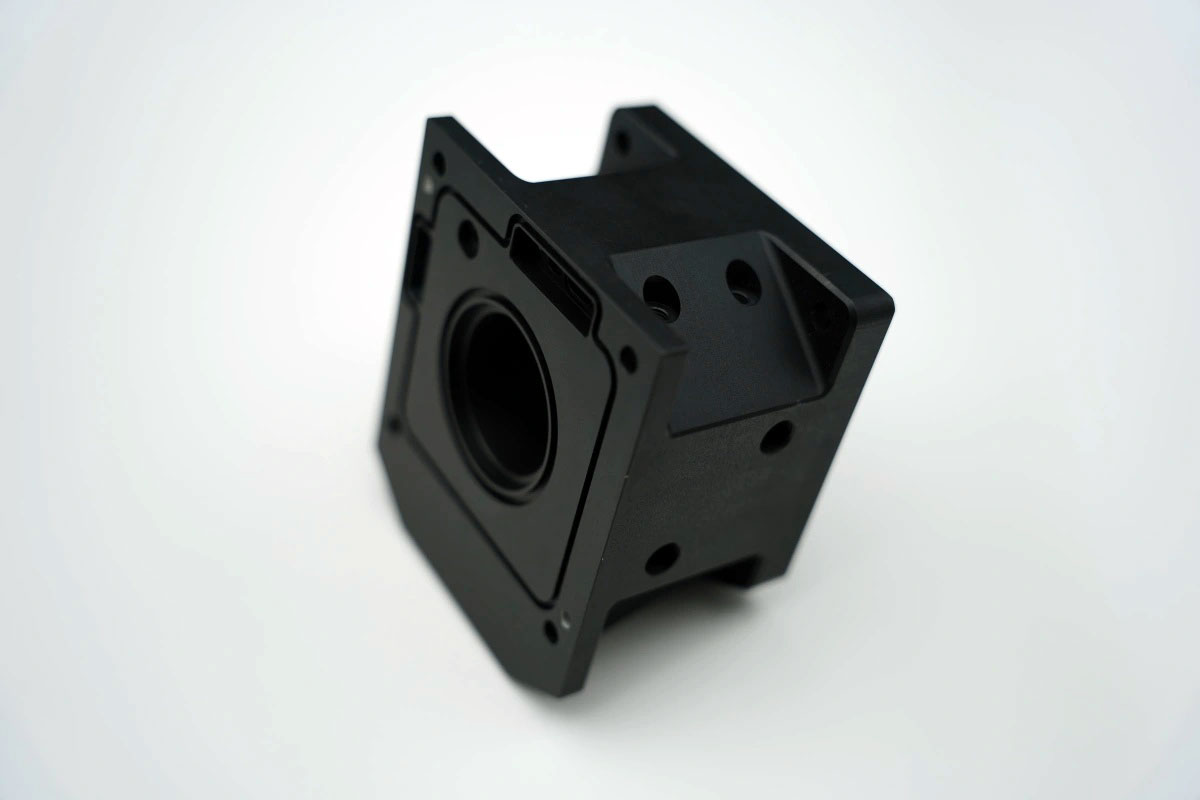

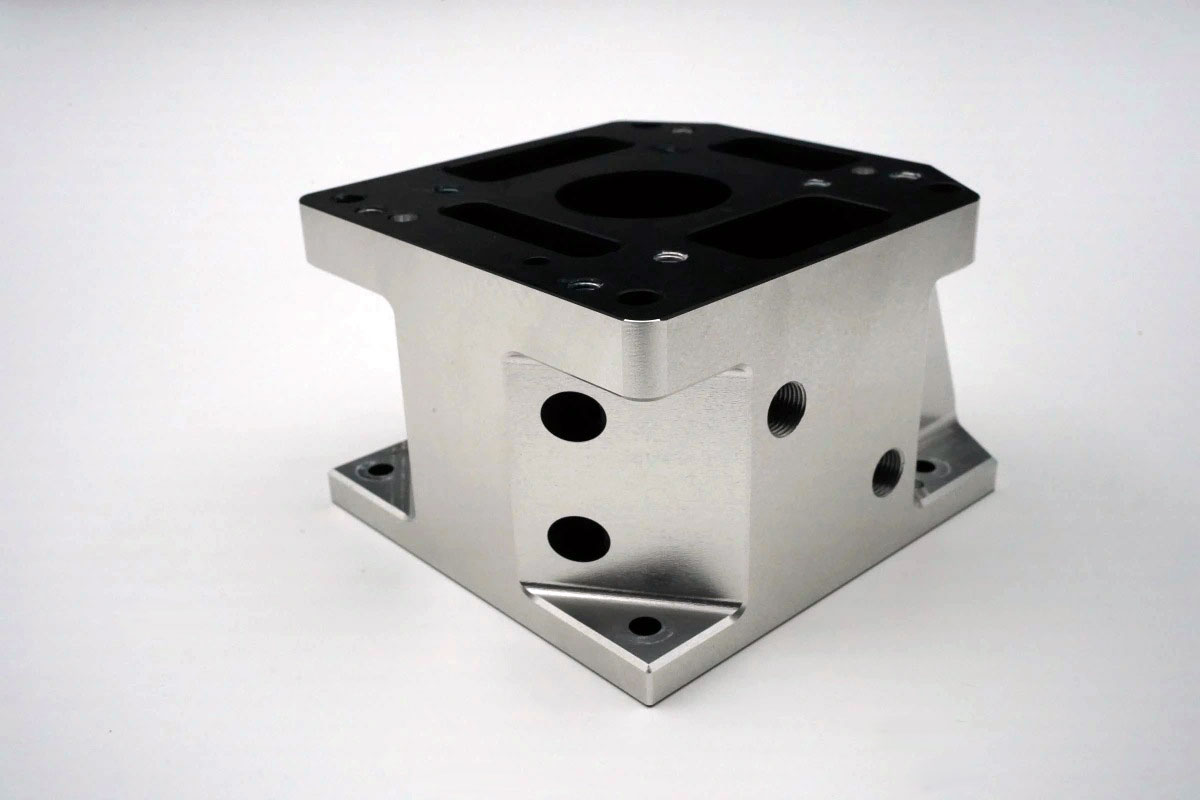

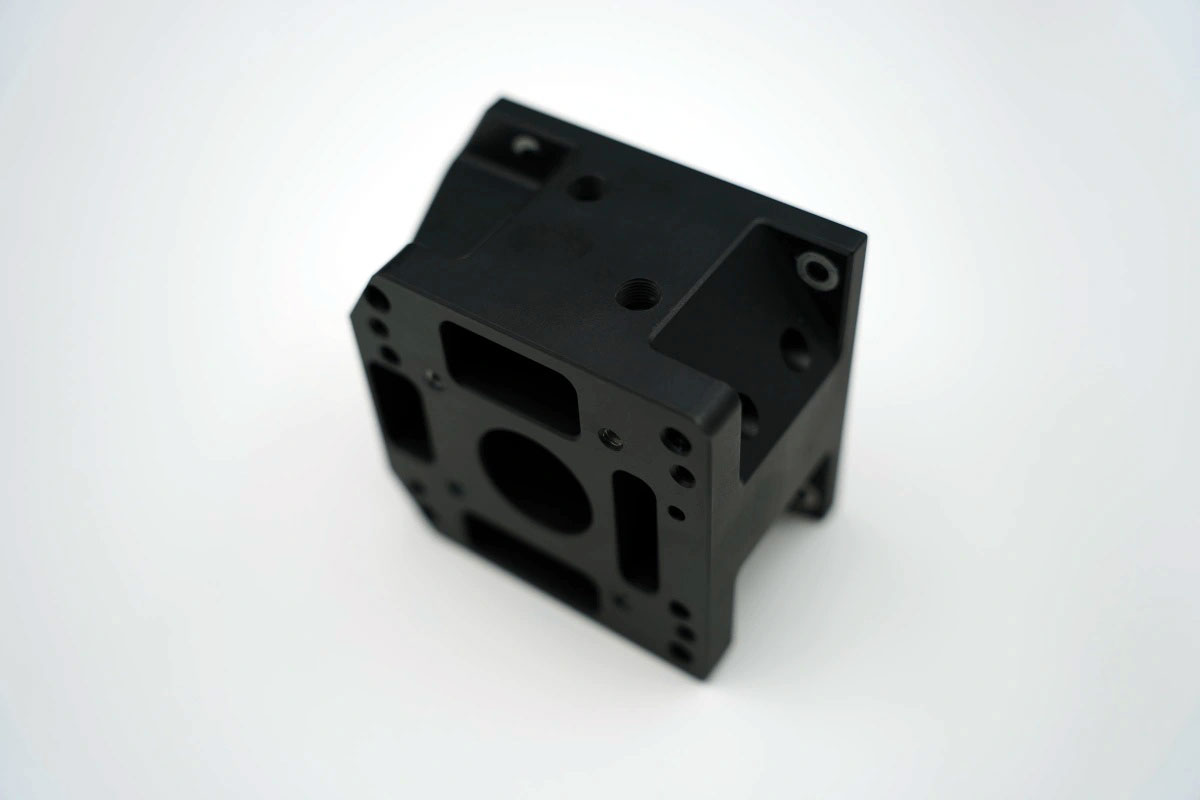

This project involved the precision CNC milling of a laser device small cavity manufactured from 6061-T6 Aluminum alloy, designed specifically for high-end laser equipment applications. The component required two-tone Surface Treatment combining Black Anodizing and bright Silver Blasting, with critical Precision machining to achieve ISO2768-F grade sealing specifications for optimal performance in sensitive optical environments.

Core Parameters

Design Advantages

• High Precision Structure: CNC milling ensures exact dimensional accuracy for optical alignment
• Superior Sealing Performance: ISO2768-F tolerance guarantees perfect sealing in laser systems
• Enhanced Durability: Two-tone surface treatment provides corrosion resistance and aesthetic appeal
• Thermal Stability: 6061-T6 aluminum maintains structural integrity in temperature-varying environments

Process Control

Strict quality control measures were implemented throughout the CNC milling process, including real-time monitoring, coordinate measuring machine (CMM) verification, and surface treatment quality inspection. Each cavity underwent rigorous leak testing and dimensional validation to ensure compliance with ISO2768-F sealing standards.

Quality Reports

Complete documentation package includes material certification, surface treatment reports, dimensional inspection records, and sealing performance test results. All manufacturing processes adhere to ISO 9001 quality standards for precision laser components.
