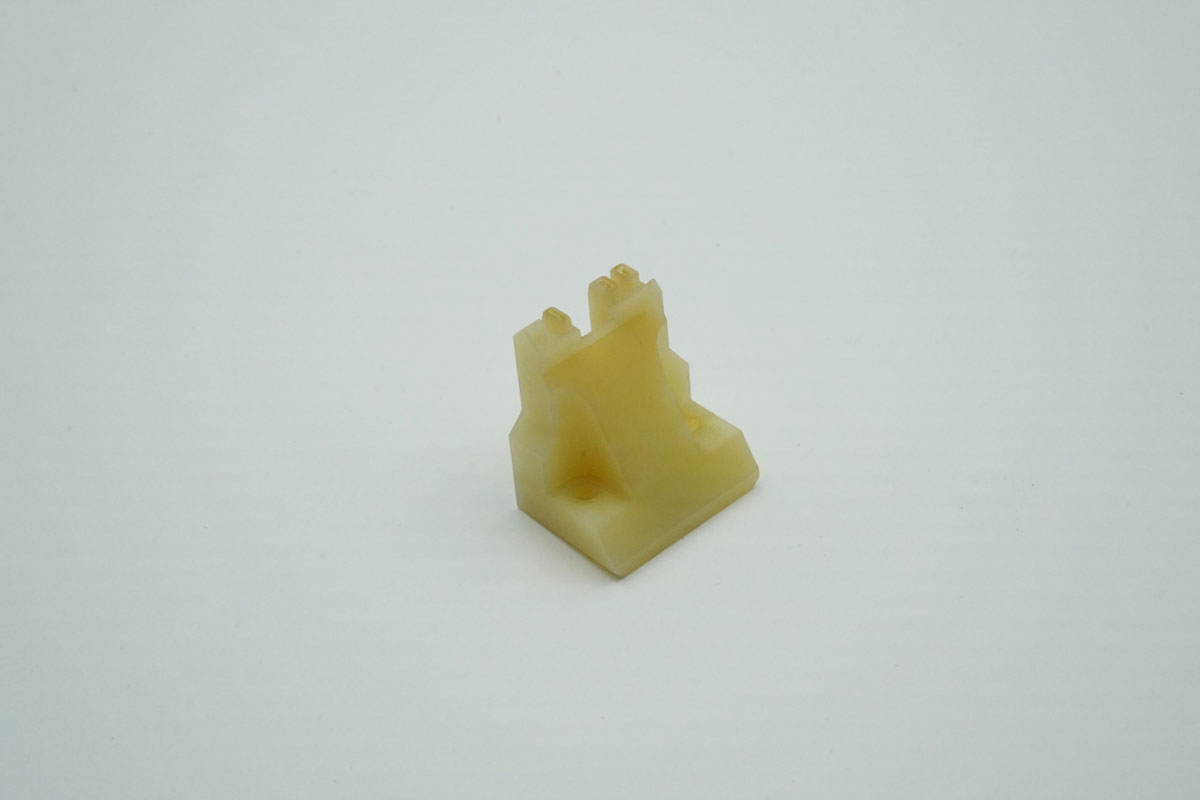

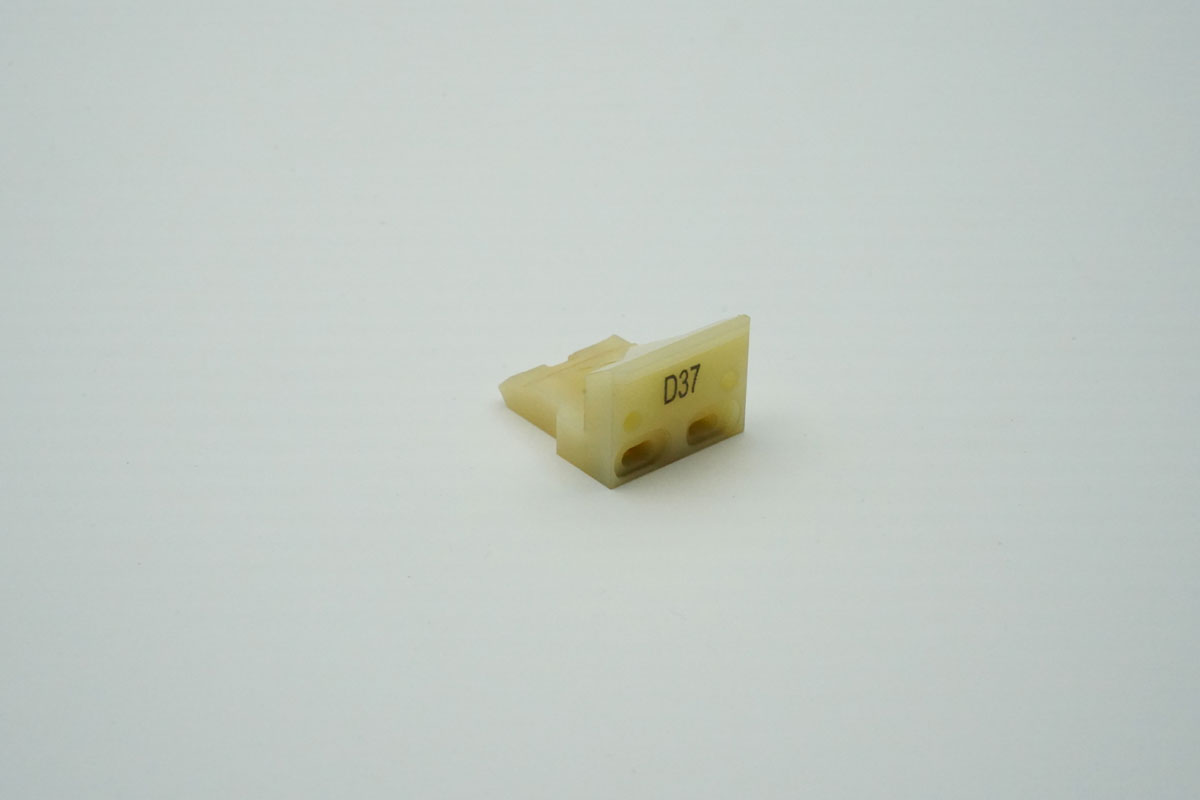

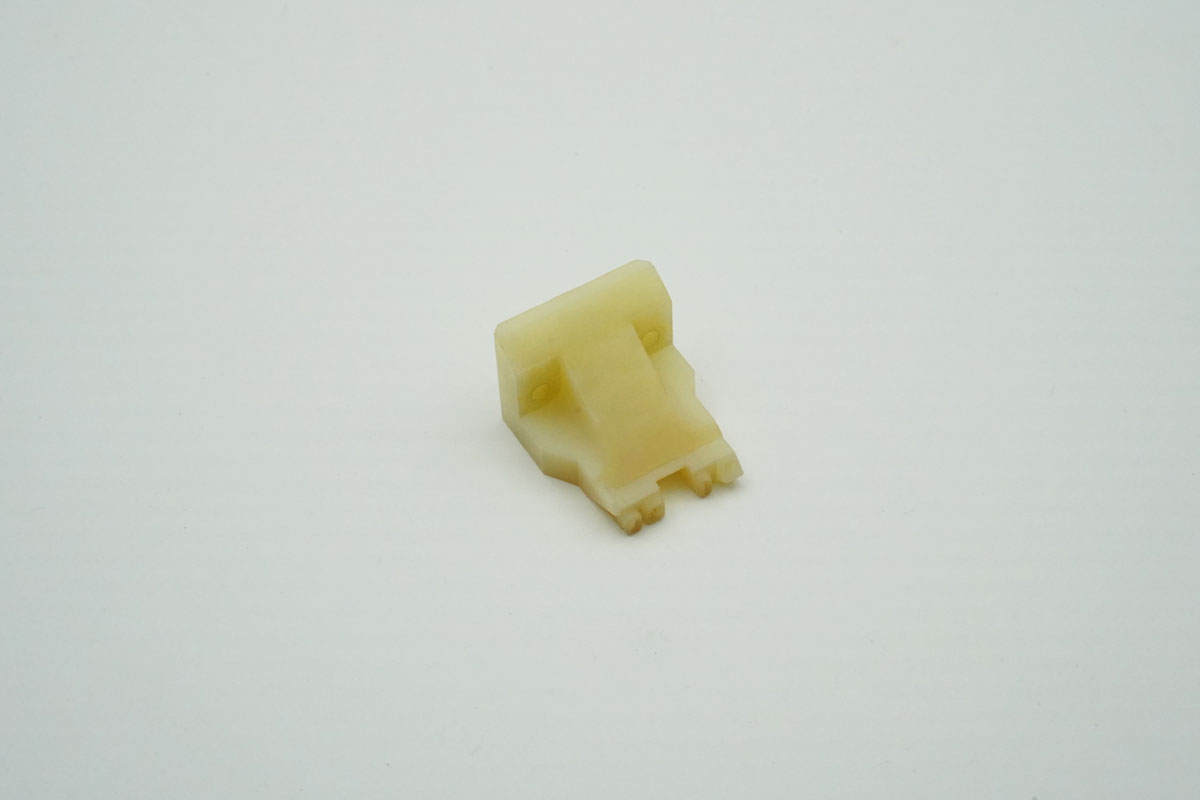

We successfully delivered a custom PVC suction nozzle for an automated packaging equipment manufacturer. Machined from rigid PVC (polyvinyl chloride), this component features a flat base with two precision mounting holes and a tapered pointed tip for precise pickup of lightweight components. The simple yet functional design ensures reliable performance in high-cycle packaging and material handling applications.
| Project Name | PVC Pointed-Tip Suction Nozzle with Flat Base |
| Material | PVC (Rigid Polyvinyl Chloride) |
| Process | CNC milling |
| Key Feature | Flat base with 2 mounting holes, pointed tapered tip |
| Base Flatness | ≤ 0.05mm |
| Mounting Hole Diameter | As specified (precision drilled) |
| Mounting Hole Position Tolerance | ±0.05mm |
| Tip Angle | Custom tapered design for precise pickup |
| Surface Finish | Ra ≤ 1.6μm |
| Application | Automated packaging / Lightweight component handling |
100% dimensional inspection performed using digital calipers and optical comparator. Base flatness verified on granite surface plate. Mounting hole position and tip geometry checked against customer drawings. Material certification available upon request.
