5-Axis Machined 6061 Aluminum Humanoid Robot Shoulder Joint | Precision Robotic Articulation

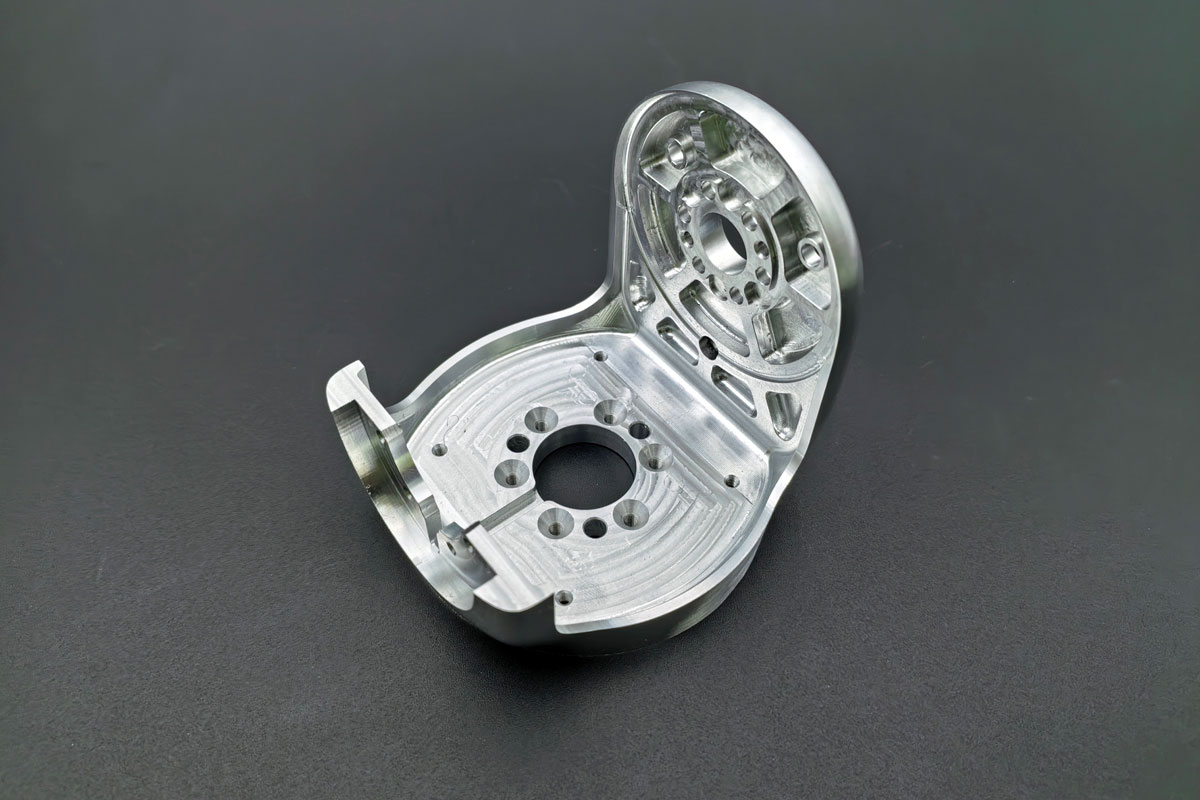

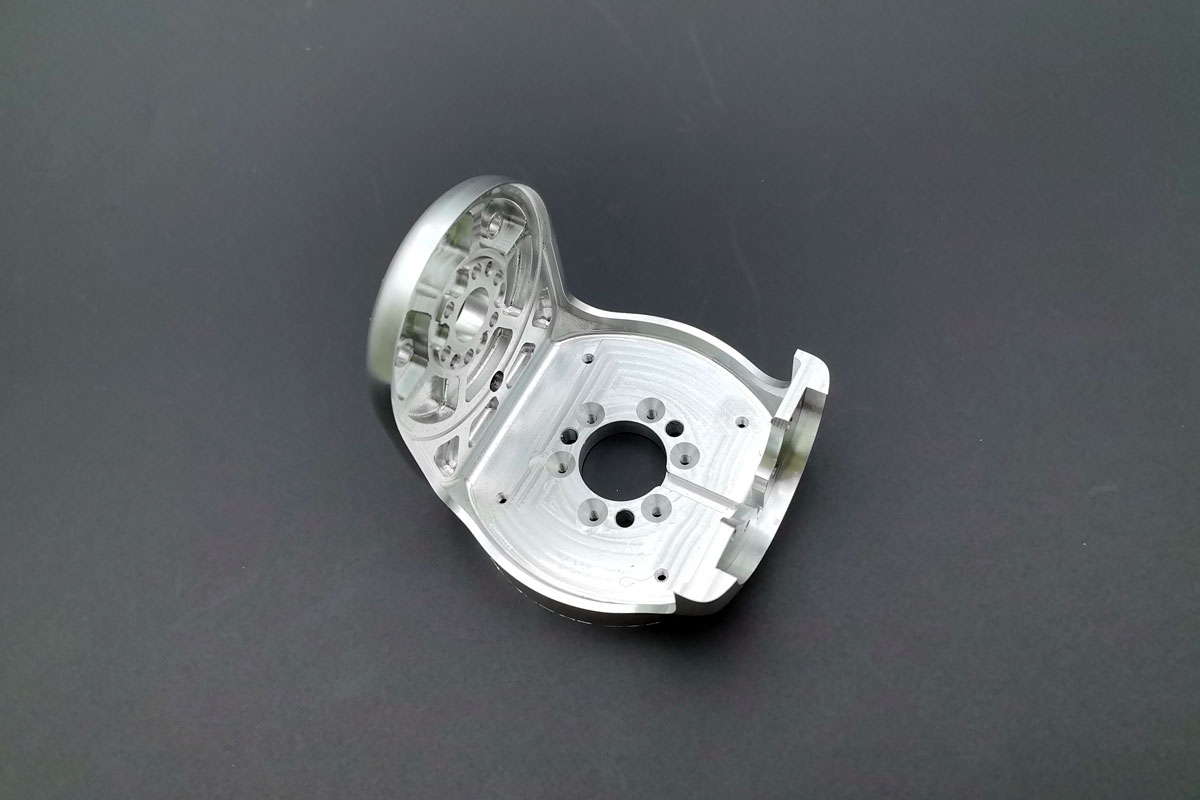

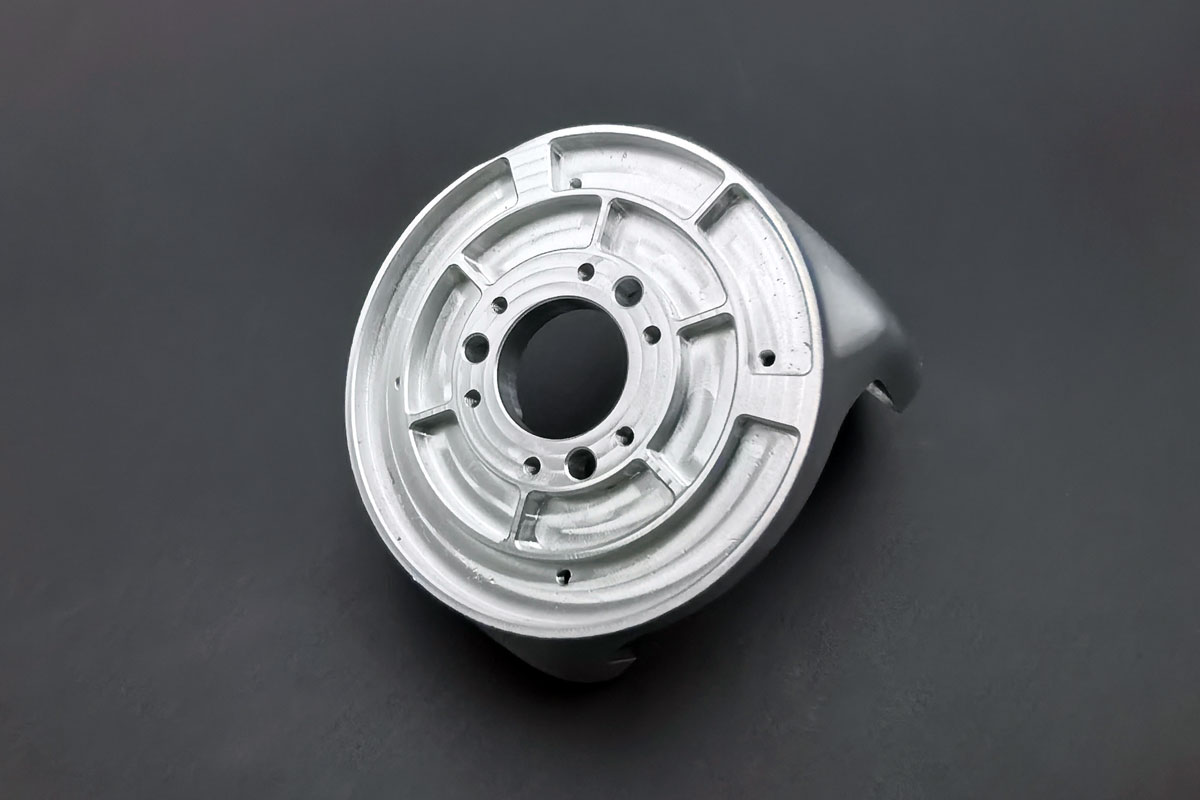

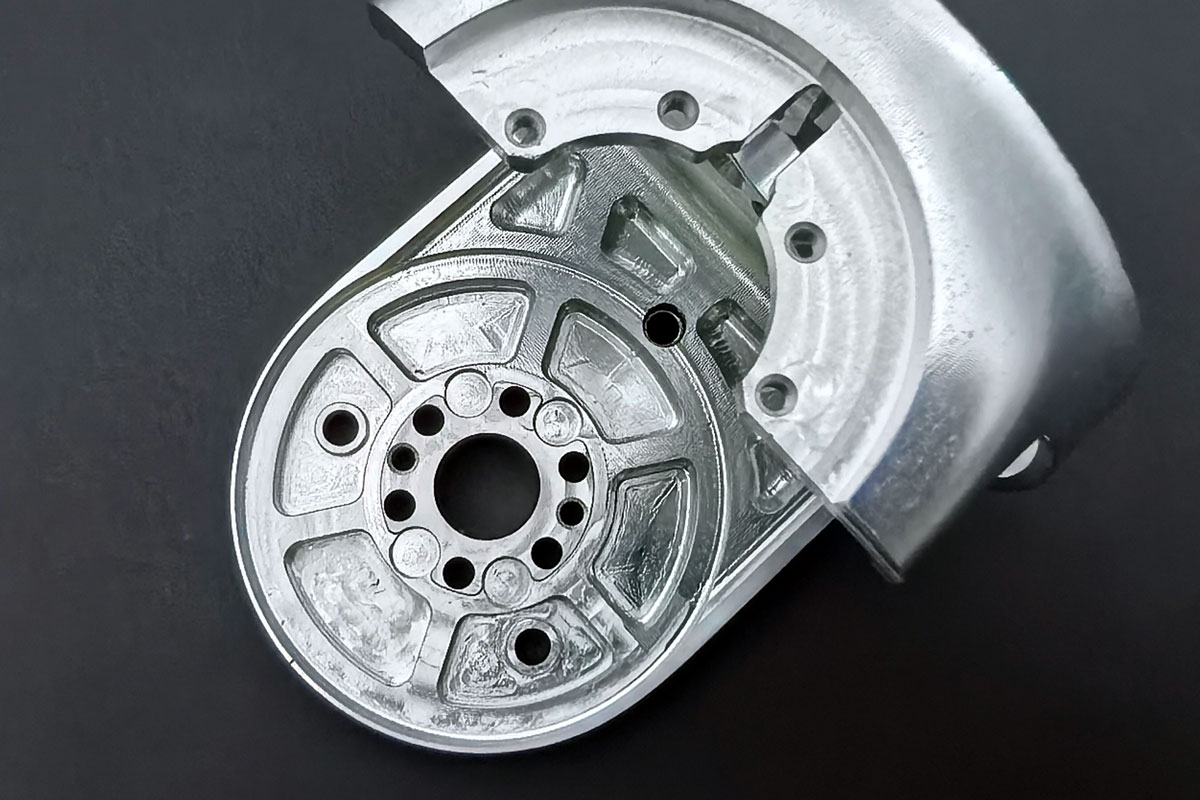

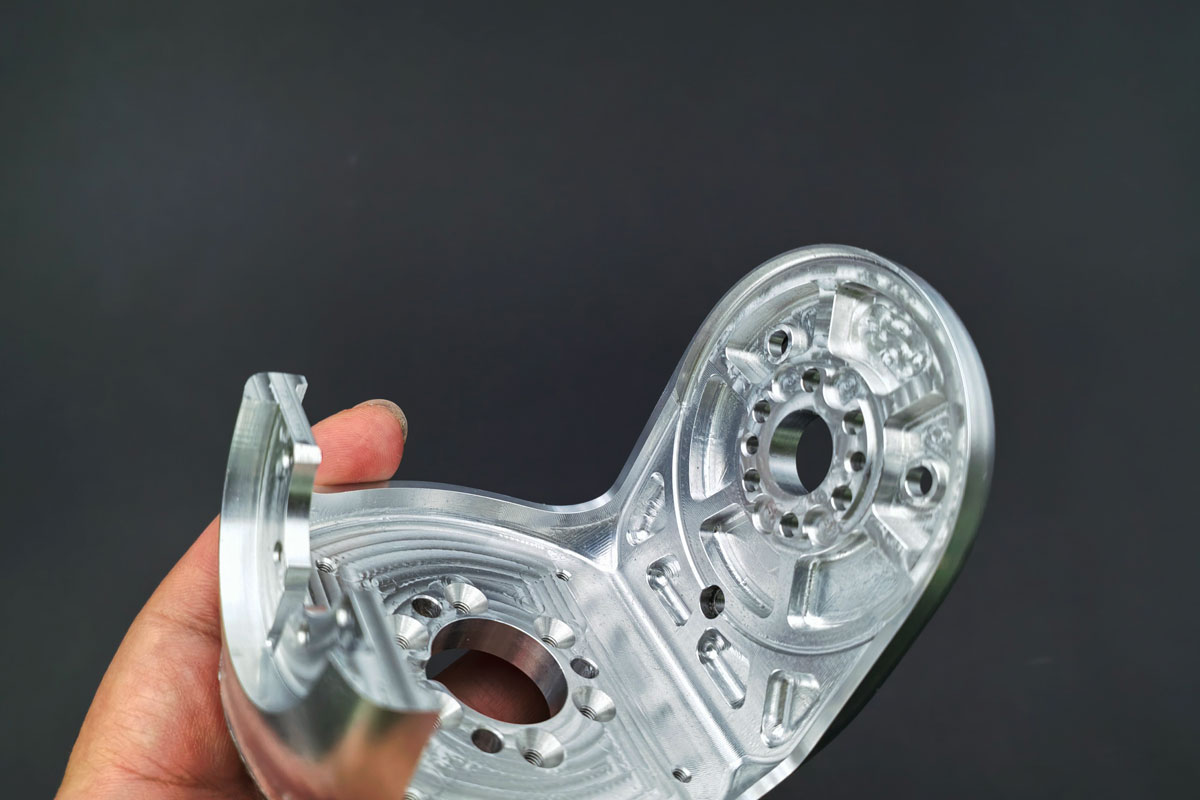

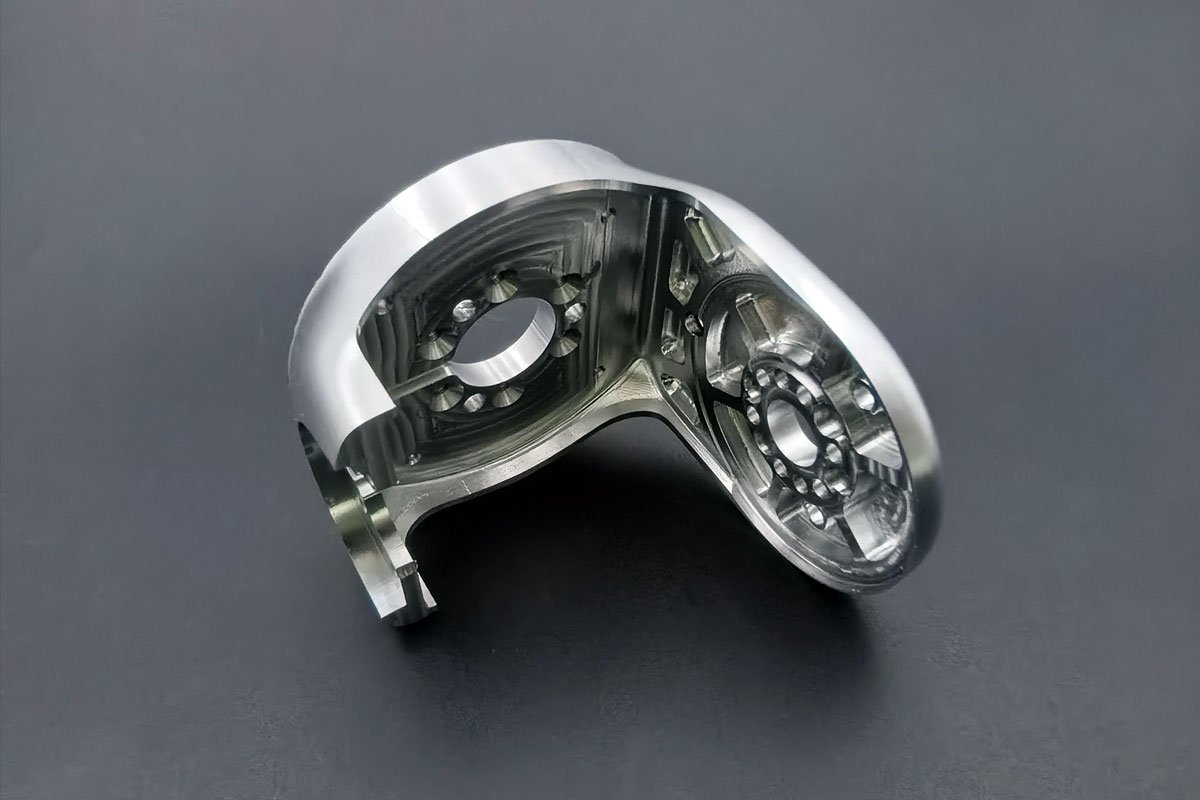

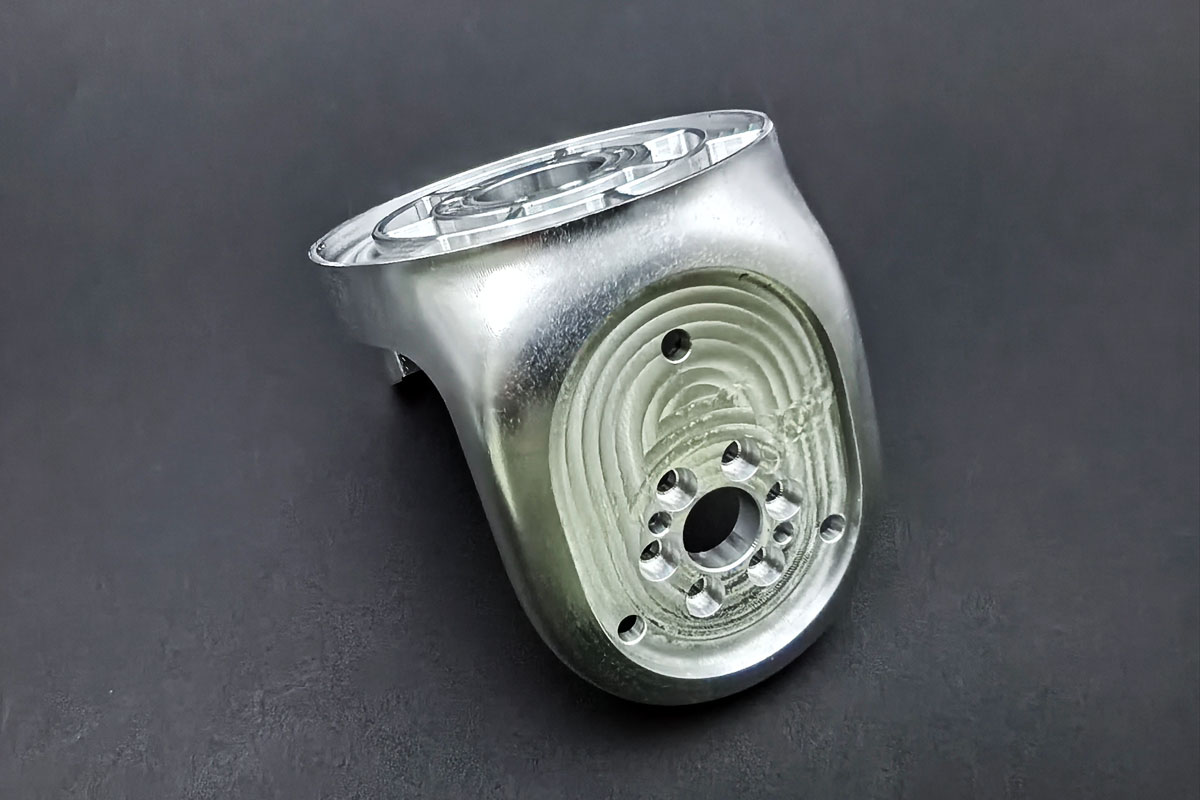

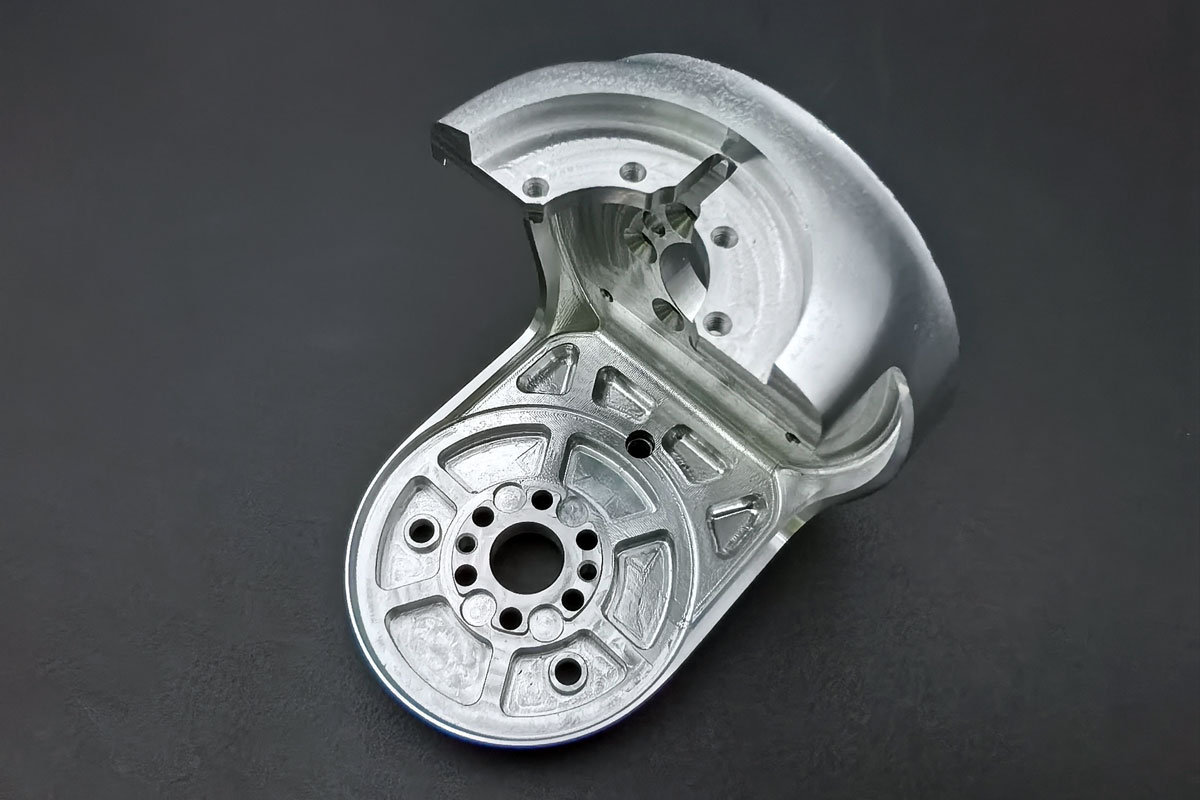

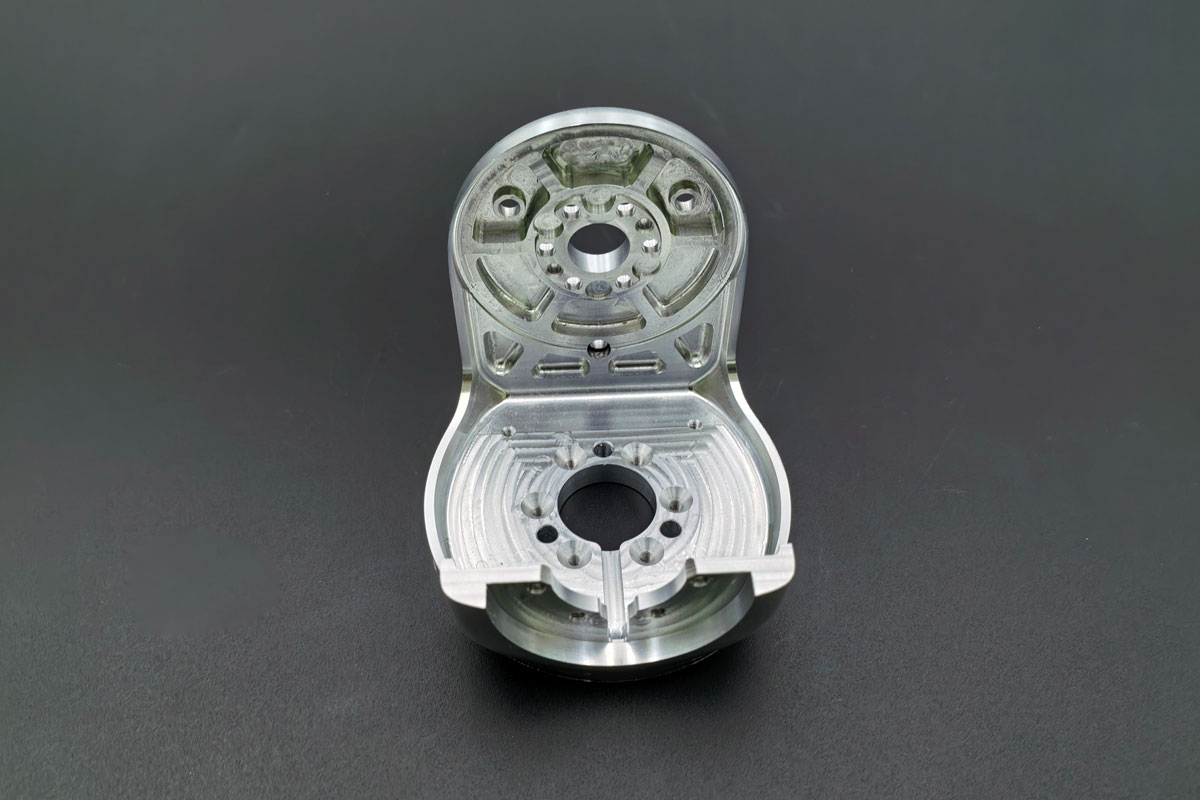

We successfully delivered a precision 5-axis machined 6061 aluminum shoulder joint component for a humanoid robotics company developing advanced bipedal platforms. Machined from 6061-T6 Aluminum billet, this complex joint housing features optimized organic contours, precision bearing seats, and integrated mounting interfaces for multiple actuators and sensors. The 5-axis simultaneous machining approach enabled the creation of bionic-inspired geometries while maintaining the tight tolerances required for smooth, backlash-free articulation in humanoid robot movement.

Project Overview

Key Technical Highlights

• 5-Axis Simultaneous Machining of Organic Geometry: Complex bionic contours and undercut features machined in a single setup, eliminating the need for multiple operations and ensuring perfect feature alignment.
• Precision Bearing Seats for Smooth Articulation: Bearing bores machined to ±0.015mm tolerance with ≤0.008mm roundness, ensuring minimal friction and zero backlash in shoulder joint movement.
• Integrated Multi-Axis Mounting Interfaces: Strategically positioned mounting points for shoulder pitch, roll, and yaw actuators, all machined within ±0.02mm positional tolerance.
• Weight-Optimized Structural Design: Material strategically removed in non-critical areas to reduce overall joint weight while maintaining structural rigidity for dynamic robot motion.
• Single-Setup Manufacturing: Complete 5-Axis Machining in one operation ensures perfect geometric relationships between all bearing seats, mounting faces, and actuator interfaces.
• Stress-Relieved Material Preparation: Pre-machining stress relief ensures long-term dimensional stability under cyclic loading during robot operation.

6061-T6 Aluminum Properties

5-Axis Machining Advantages for Robotics

Quality Verification

100% inspection performed using ZEISS CMM with 1.2μm repeatability. All bearing bores verified for diameter, roundness, and concentricity. Critical mounting hole positions measured and documented. Surface finish verified on bearing surfaces using profilometer. Full 3D scanning available for complex contour validation against CAD model. First-article inspection report and material certification provided with each batch.

Robotics Applications

✓ Humanoid robot shoulder joints
✓ Collaborative robot (cobot) arm articulations
✓ Legged robot hip and knee joints
✓ Robotic manipulator base joints
✓ Exoskeleton articulation points
✓ Prosthetic joint components
✓ High-precision actuator housings
✓ Robot arm wrist and elbow joints
✓ Dynamic load-bearing robotic structures

Why Partner With Us?

• Expertise in 5-axis simultaneous machining for complex robotic components
• Experience with humanoid and legged robotics applications
• Precision bearing seat machining for zero-backlash articulation
• Multi-axis integration capability for complex joint assemblies
• Material certification and full traceability
• Rapid prototyping to production scaling
• Design for manufacturability guidance for robotic structures
