Chrome-Plated Copper Valve Body | Precision CNC Machined Fluid Control Components

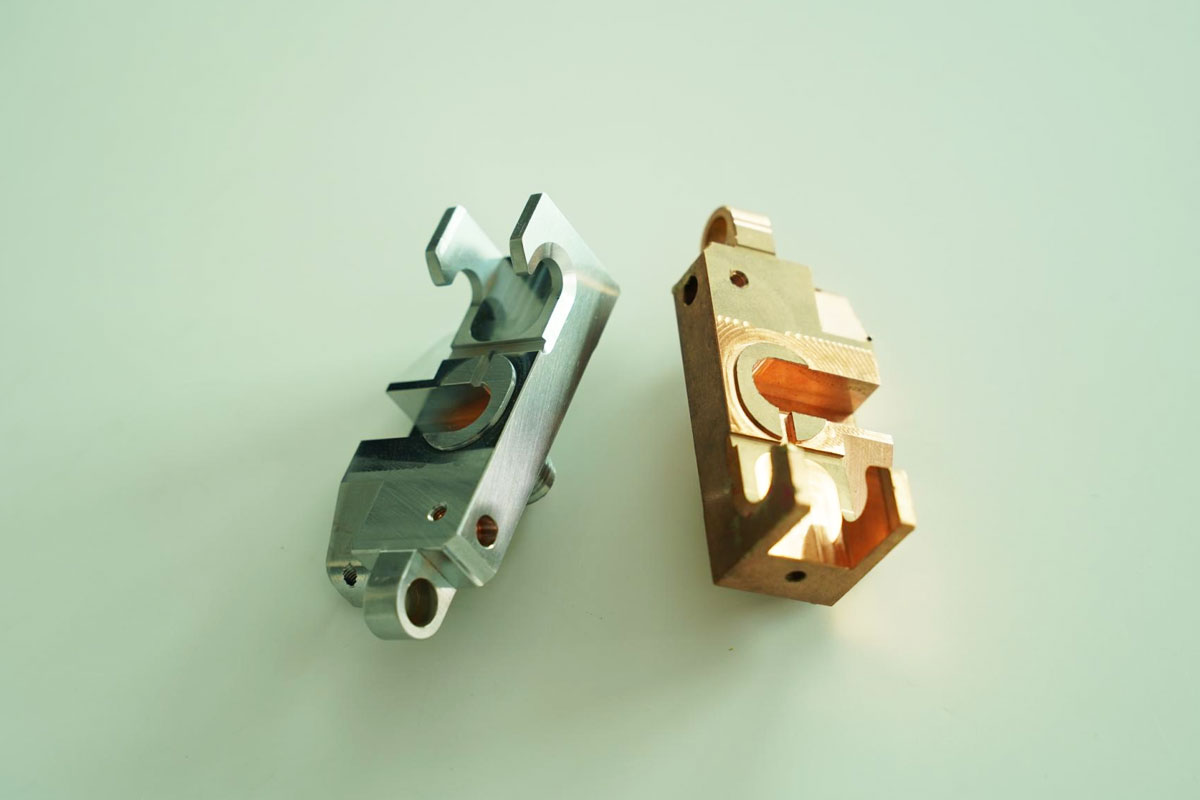

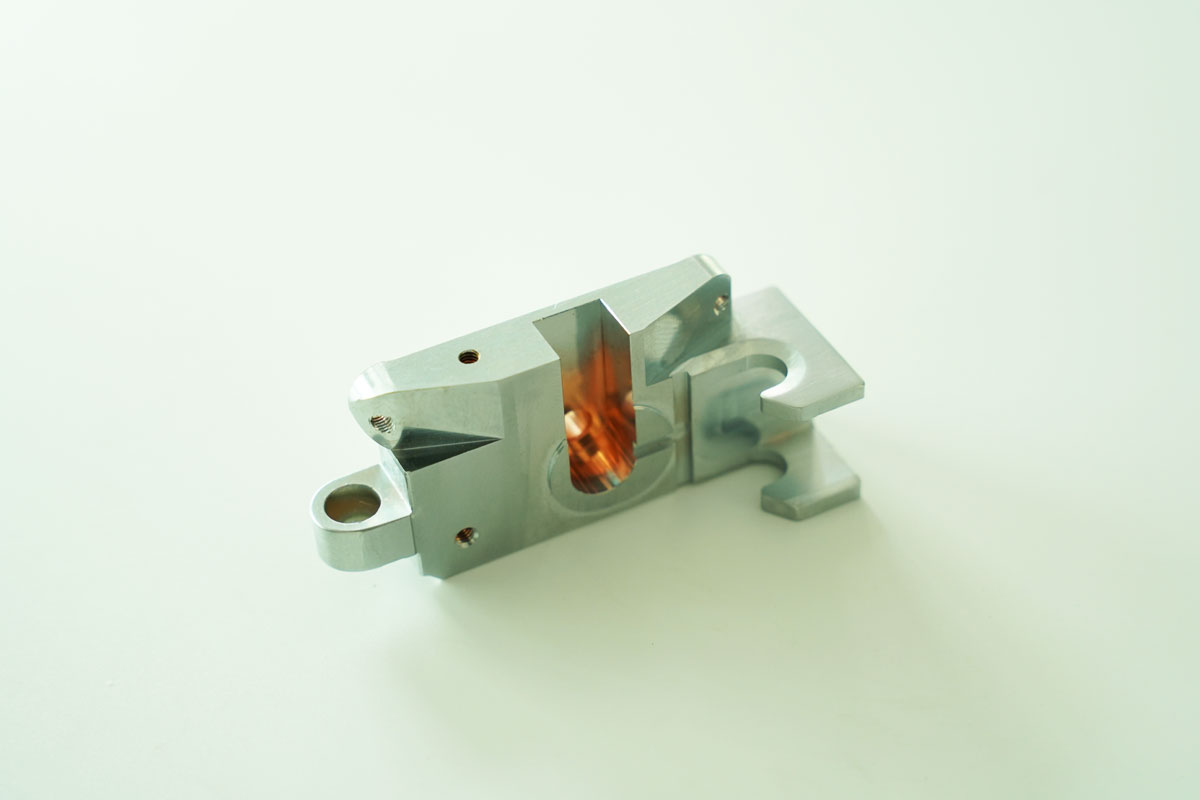

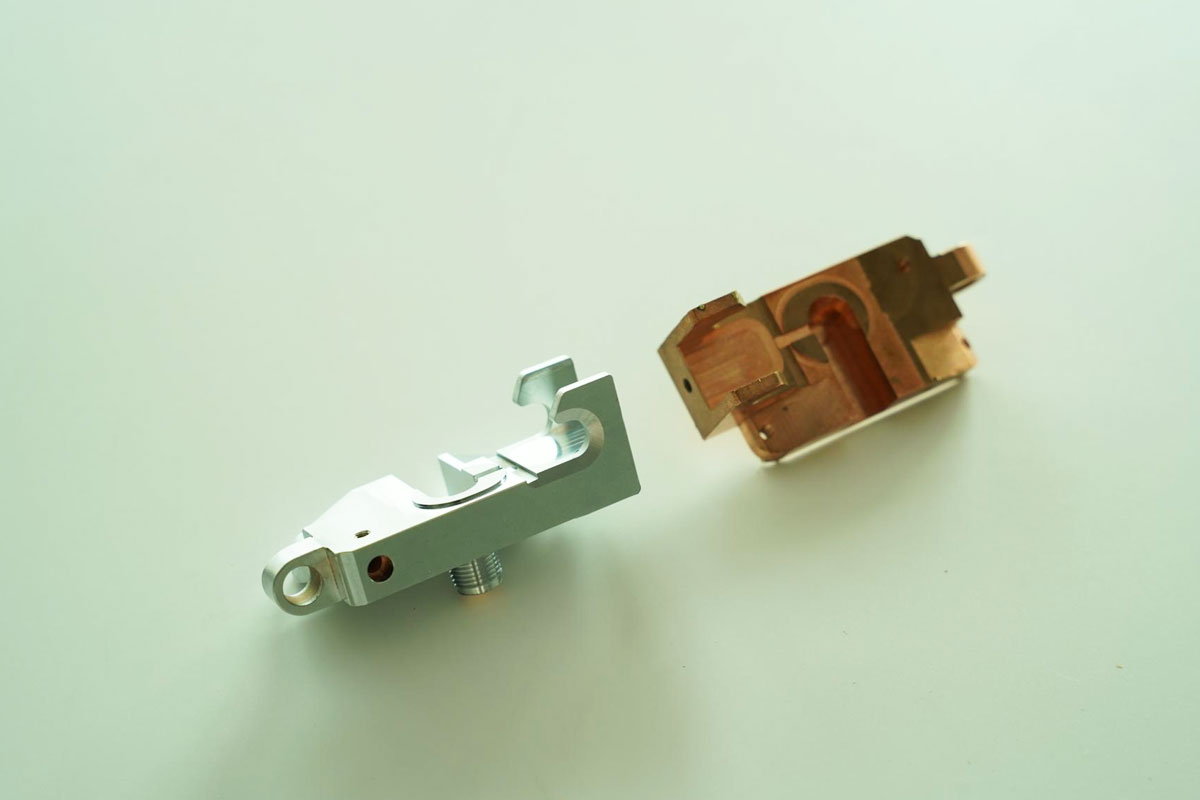

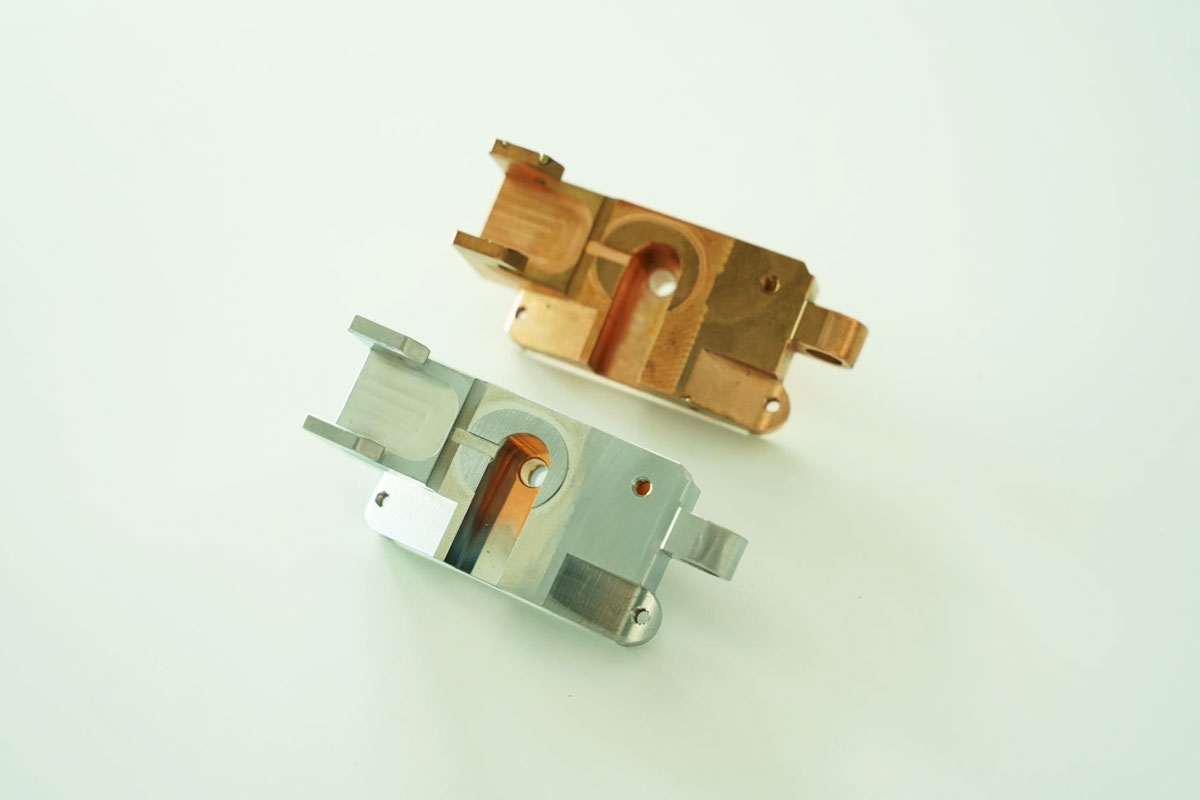

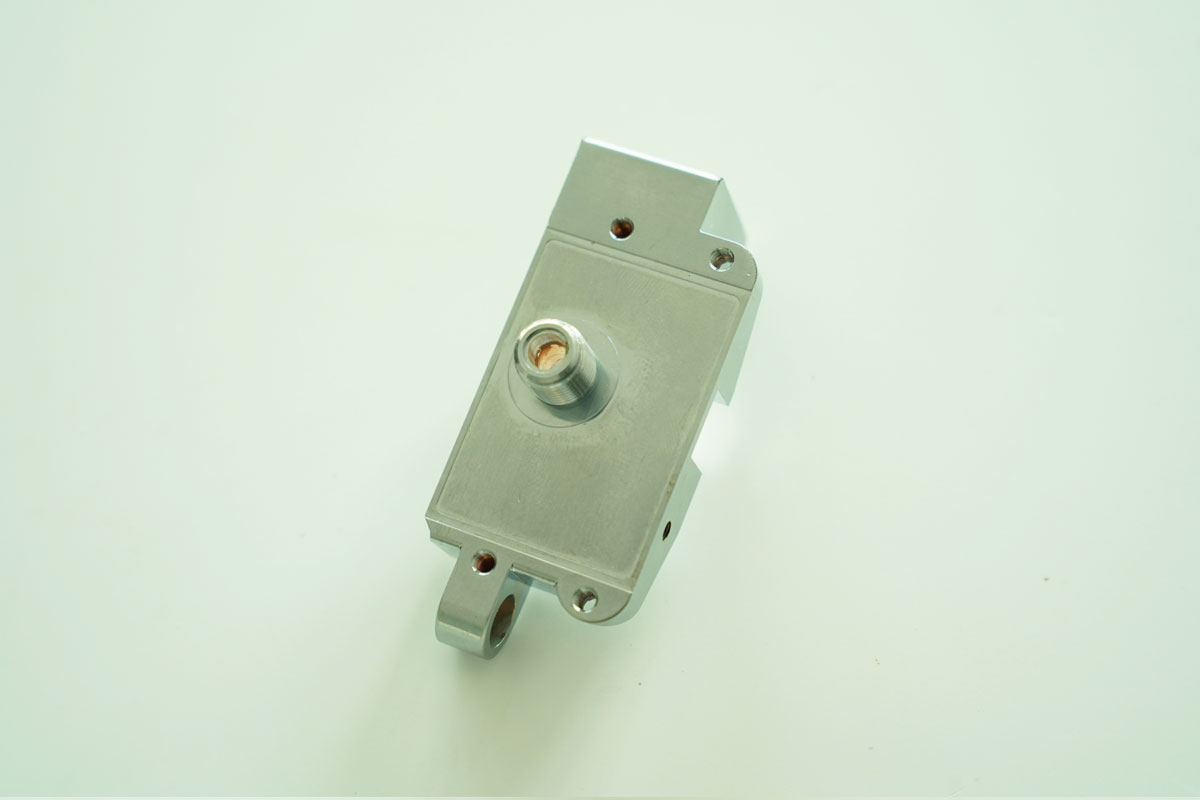

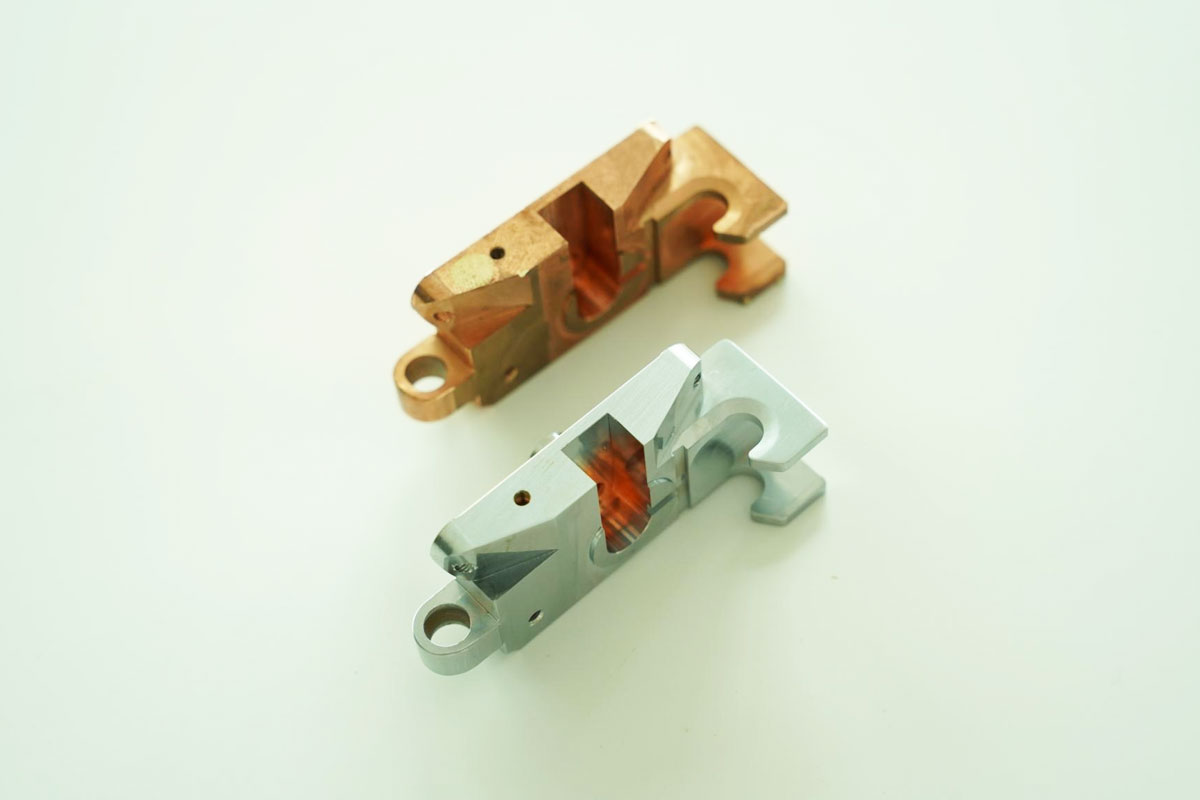

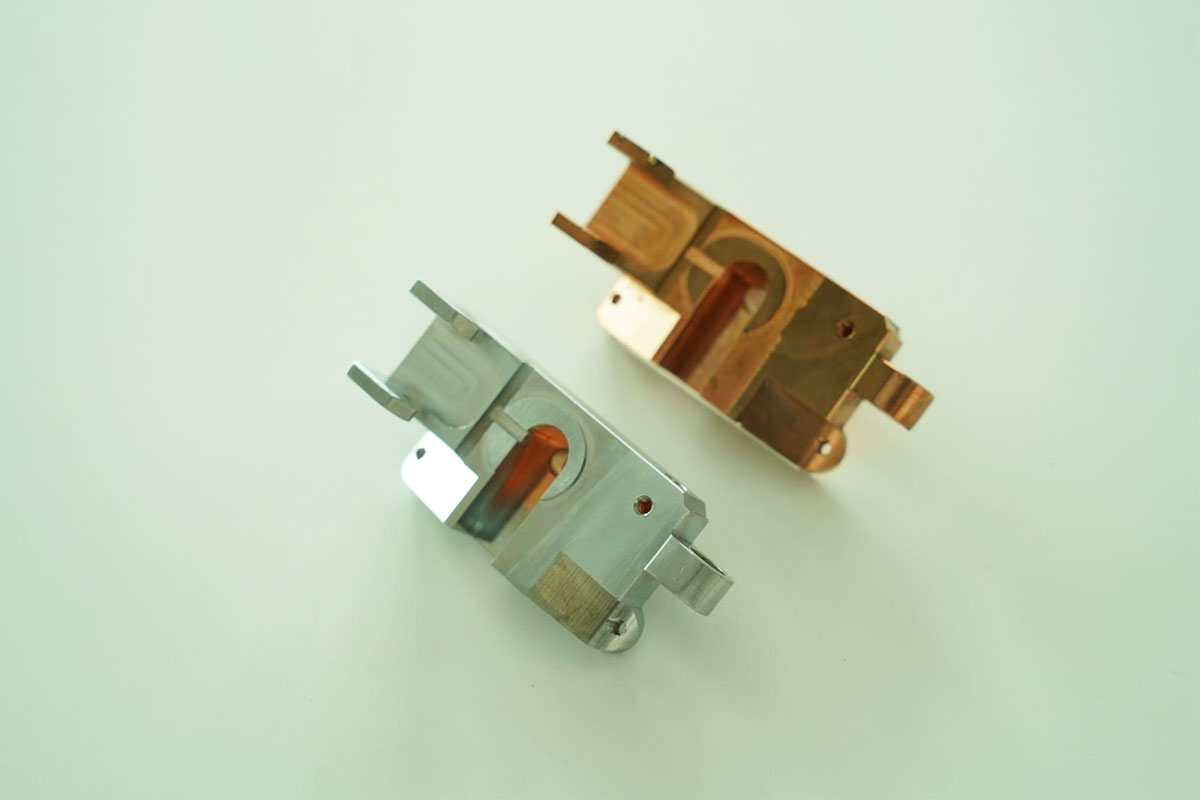

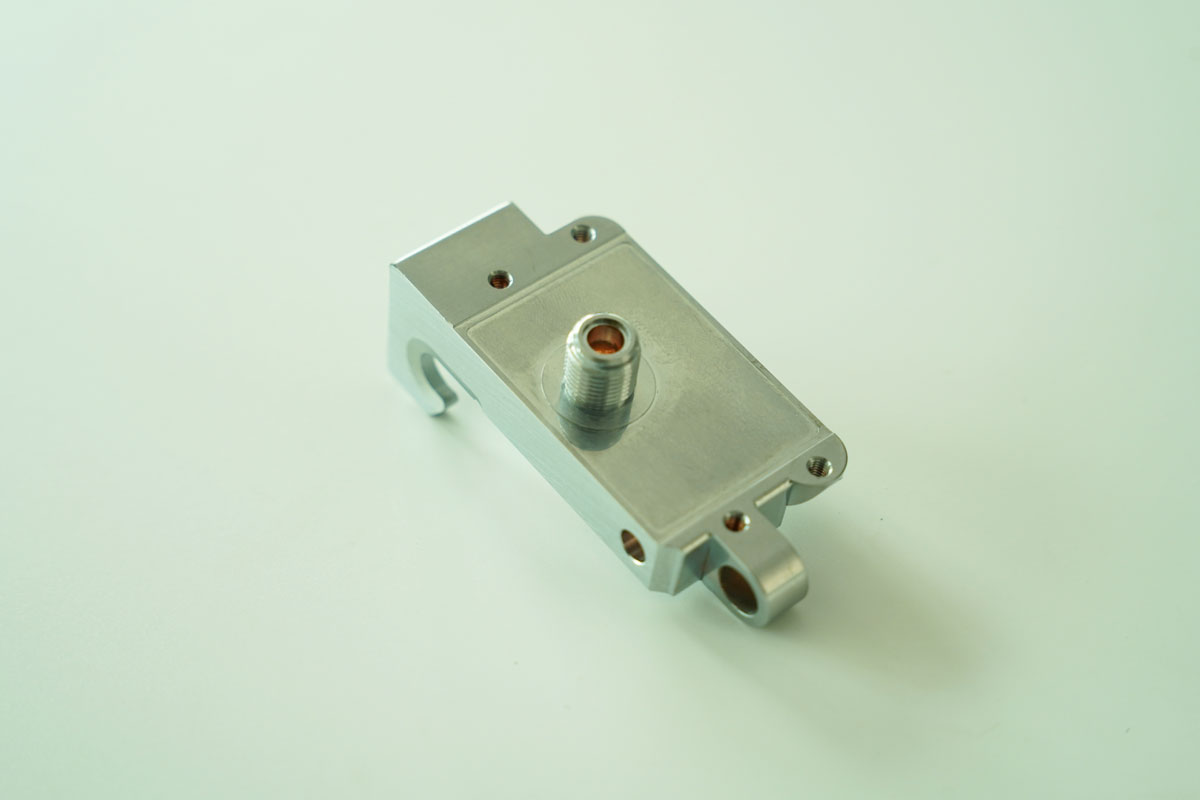

We successfully delivered a precision machined copper valve body component for a fluid control equipment manufacturer. Machined from high-quality copper billet and finished with industrial hard chrome plating, this valve body combines copper's excellent thermal and electrical conductivity with chrome's superior wear resistance and corrosion protection. The component functions as a critical flow control element in industrial fluid systems, requiring precise internal passages, sealing surfaces, and mounting features all machined to tight tolerances.

Project Overview

Key Technical Highlights

• Copper Material Selection: High-purity copper provides exceptional thermal and electrical conductivity for applications requiring heat transfer or electrical grounding within valve systems.
• Precision Internal Passage Machining: Complex internal flow paths and valve seats machined to ±0.01mm tolerance, ensuring accurate flow control and leak-proof operation.
• Industrial Hard Chrome Plating: Dense chrome layer (10-25μm) provides wear-resistant surface, corrosion protection, and reduced friction for moving components within the valve assembly.
• Pre-Plating Surface Preparation: Critical sealing surfaces machined to Ra ≤ 0.4μm before plating, ensuring final plated surfaces meet functional requirements.
• Corrosion Resistance Enhancement: Chrome plating protects copper from oxidation and chemical attack in aggressive fluid environments.
• Single-Setup Machining: All critical features machined in one operation before plating, ensuring perfect geometric relationships between valve seats, ports, and mounting interfaces.

Copper Material Properties

Hard Chrome Plating Specifications

Quality Verification

100% inspection performed using ZEISS CMM with 1.2μm repeatability. Critical sealing surfaces and internal passages verified for dimensional accuracy pre-plating. Plating thickness measured using X-ray fluorescence (XRF) or magnetic induction methods. Adhesion tested per ASTM B489. Surface finish verified post-plating. Material certification and plating certification provided with each batch.
