Beige PEEK Smartphone Fixture Clamp Plate | CNC Milled for Assembly Lines

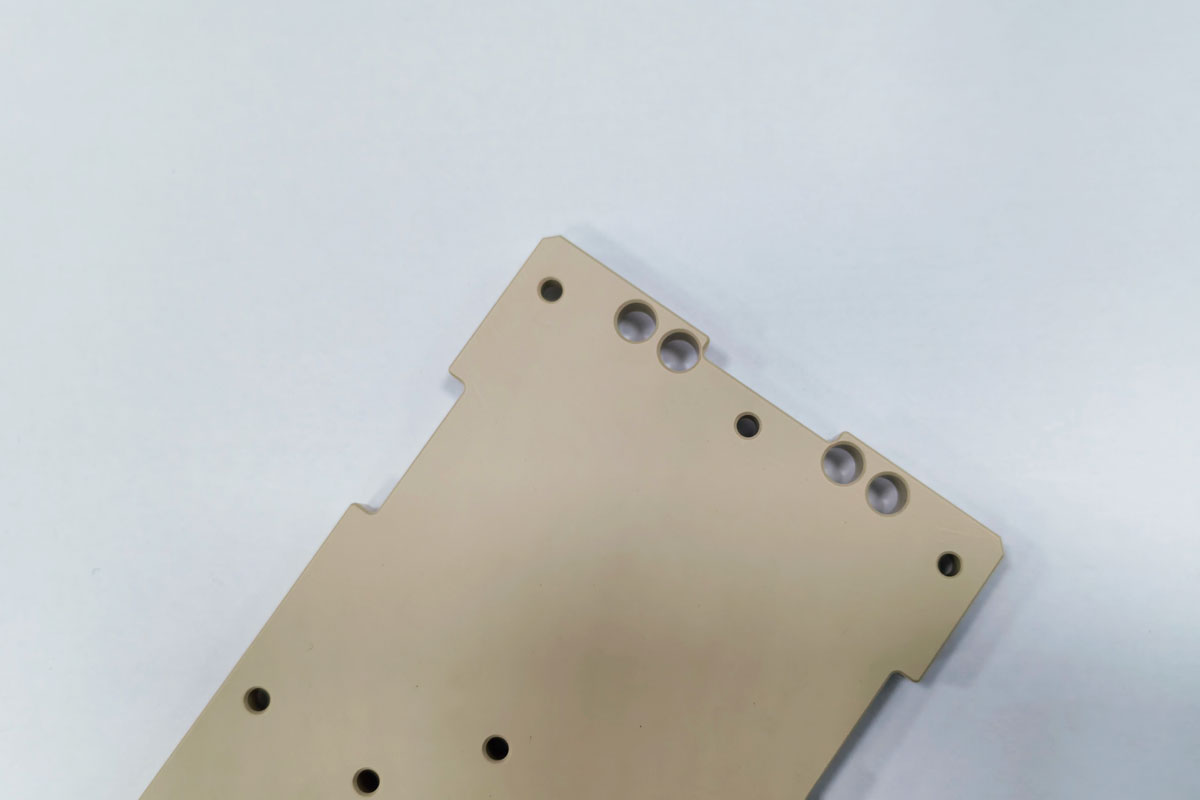

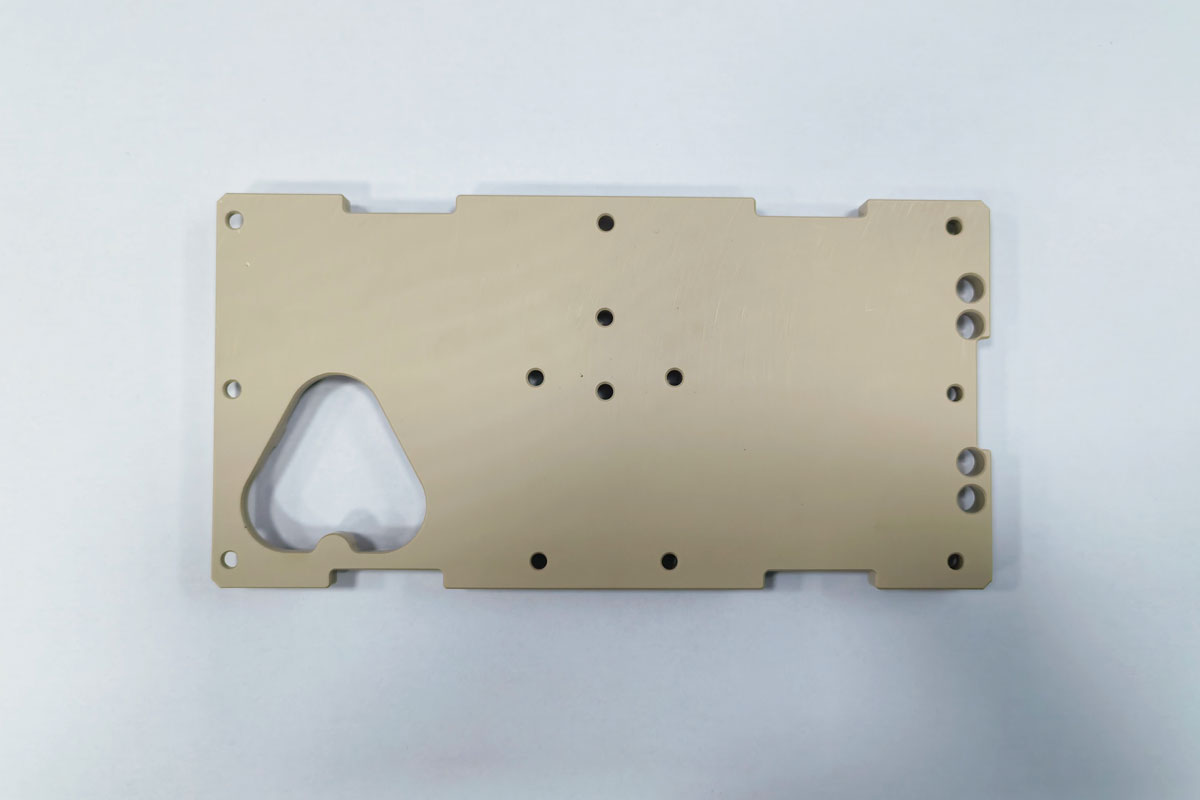

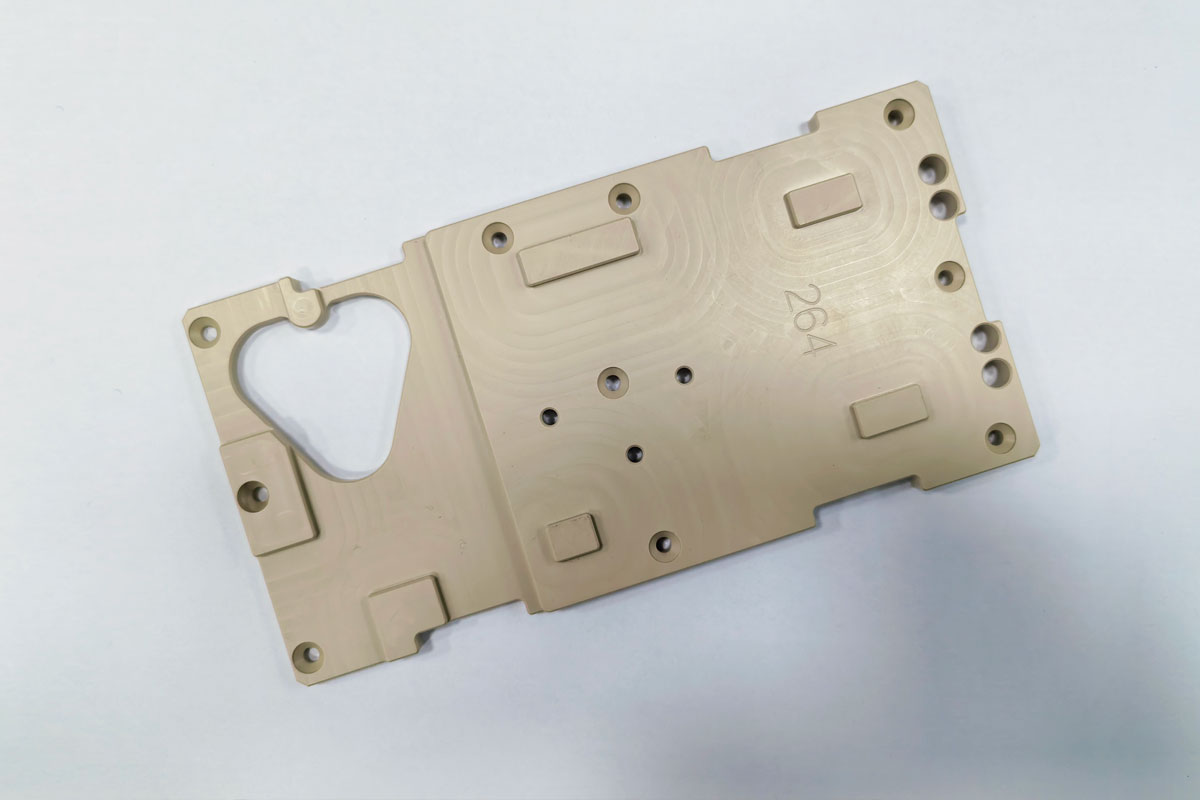

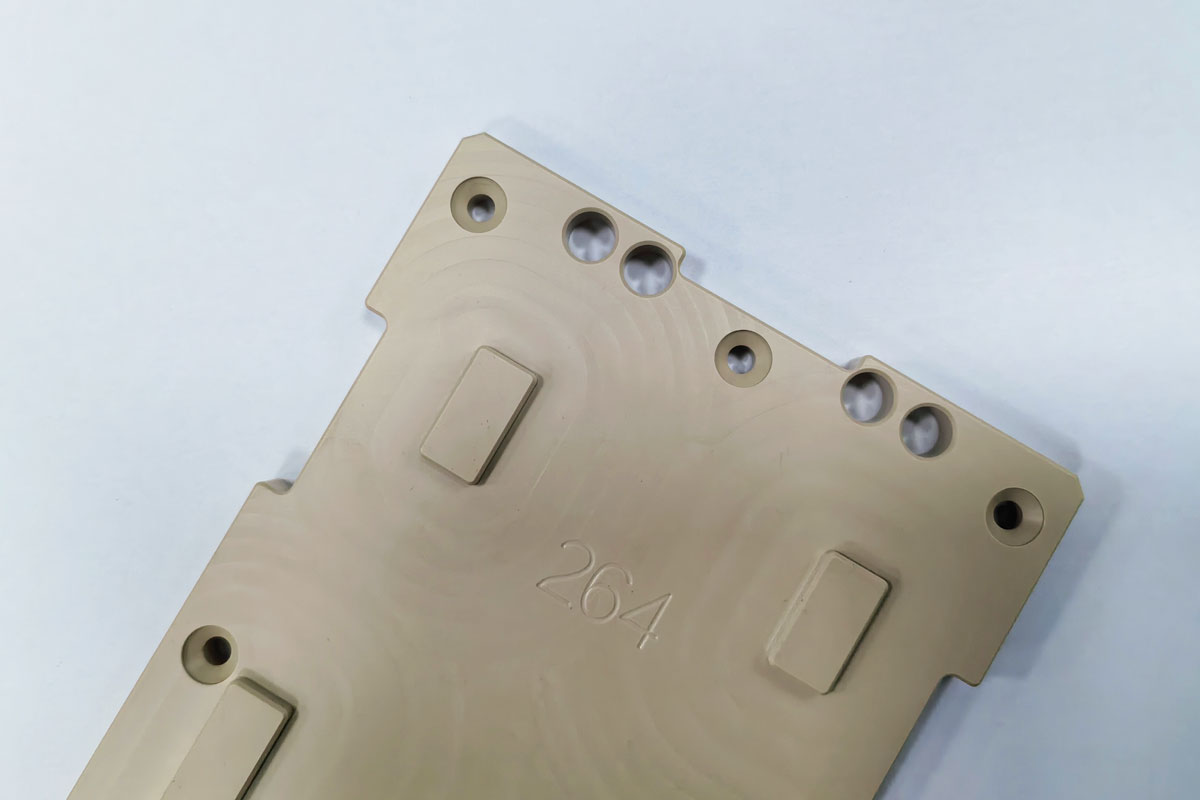

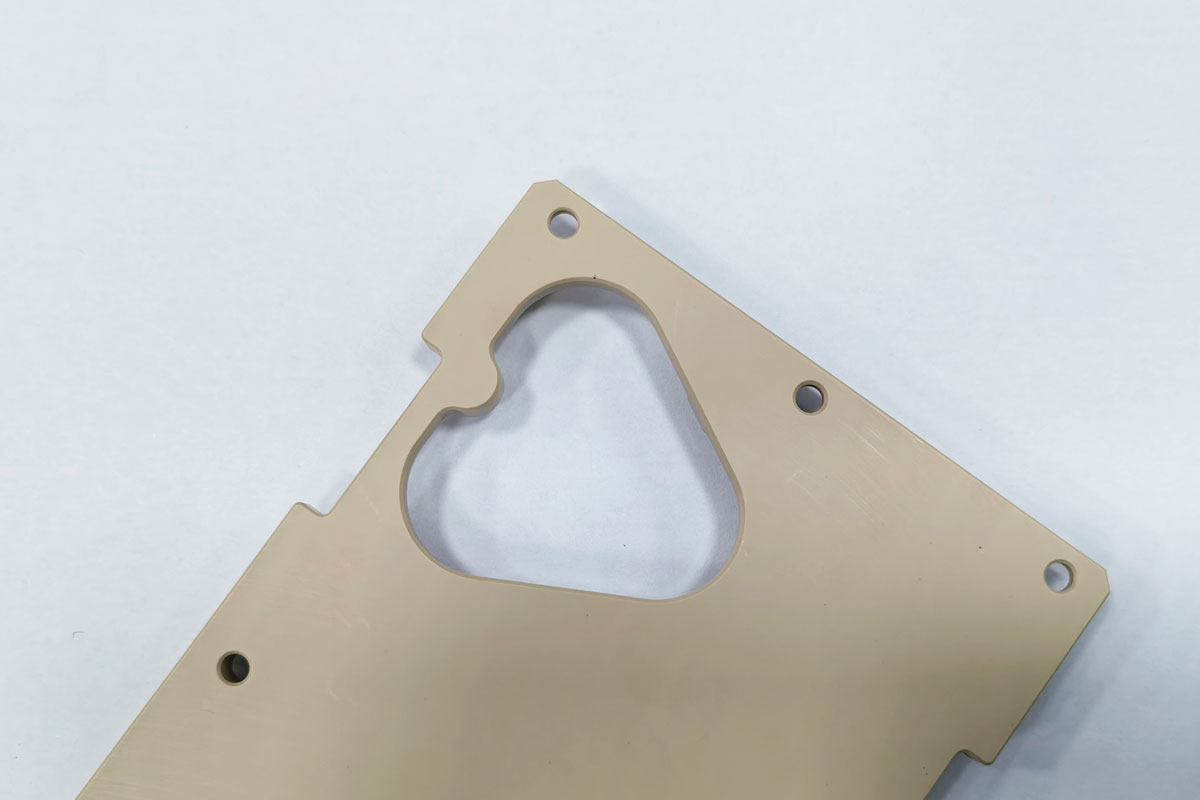

We successfully delivered a precision machined beige PEEK fixture clamp plate for a smartphone assembly line manufacturer. Machined from natural beige PEEK, this component functions as a fixture pressure plate during phone assembly operations. The plate features precision-milled mounting holes, contoured pressure surfaces, and optimized thin-wall sections to provide consistent clamping force without scratching or damaging phone housings.

Project Overview

Key Technical Highlights

• Non-Marring Contact Surfaces: PEEK material provides firm clamping force while remaining soft enough to prevent scratches or damage to phone housings during assembly.

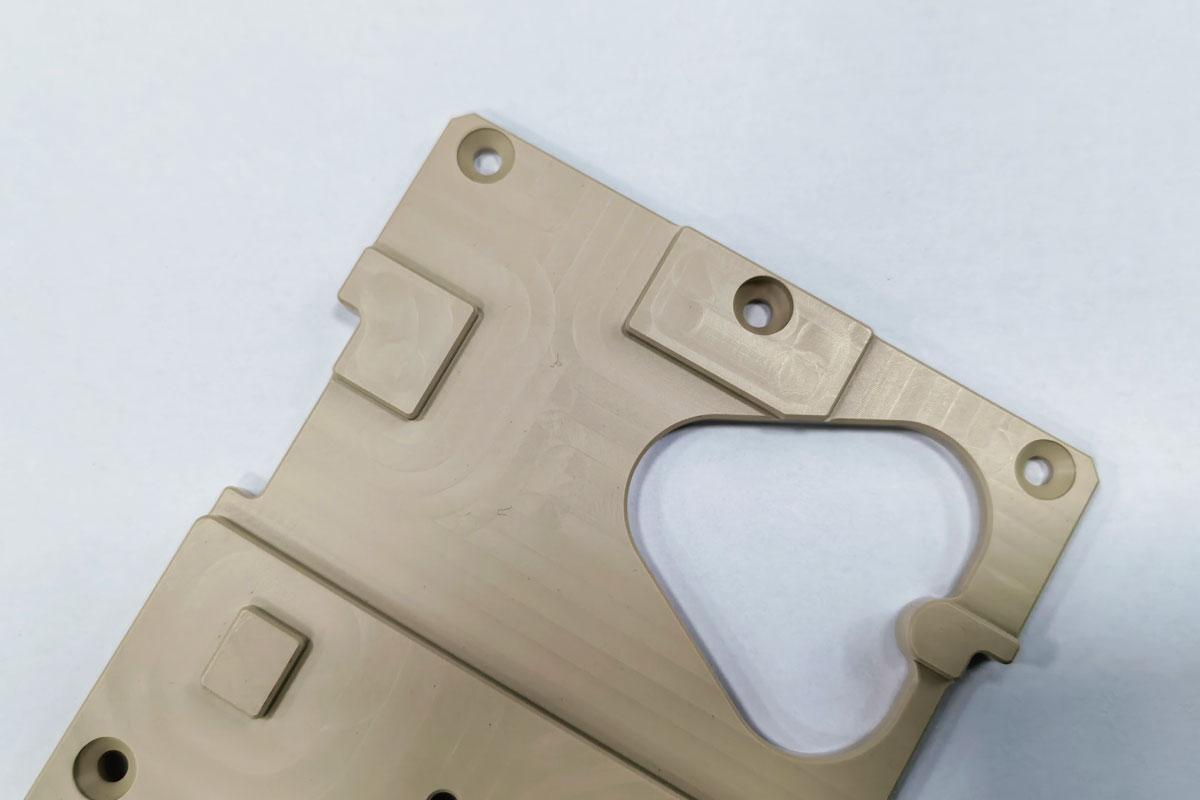

• Contoured Pressure Design: Custom-machined contours match phone profiles, ensuring even pressure distribution across the device.

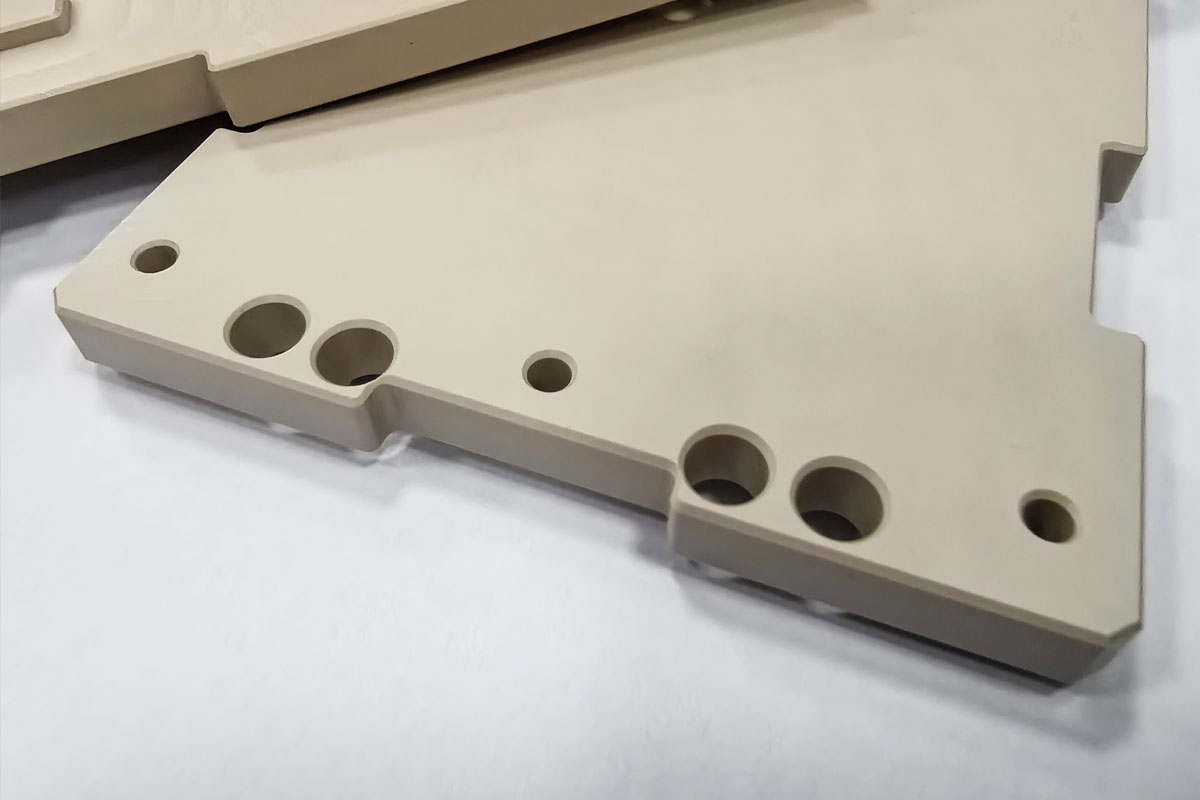

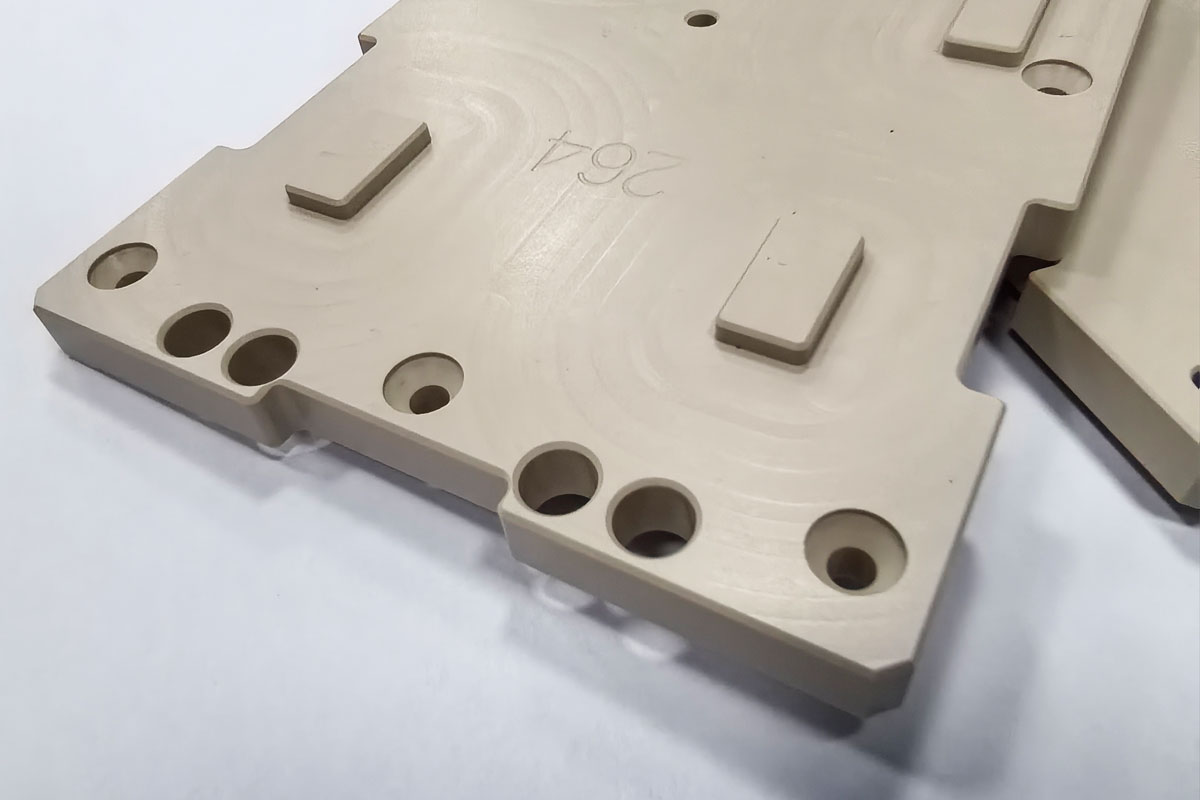

• Precision Mounting Hole Pattern: ±0.015mm hole position tolerance guarantees perfect alignment with fixture base plates for quick changeover.
• Beige PEEK Aesthetic: Natural beige color provides clean appearance and easy visual inspection for contamination in cleanroom environments.
• Wear-Resistant & Reusable: PEEK's excellent wear resistance ensures long service life even under repeated clamping cycles.

Quality Verification

100% dimensional inspection performed using ZEISS CMM with 1.5μm repeatability. Flatness verified on granite inspection table. Surface finish measured on critical contact areas. Material certification and first-article inspection report provided with each batch.

Industry Applications

✓ Smartphone assembly fixtures
✓ Consumer electronics manufacturing
✓ Cleanroom assembly stations
✓ Automated production lines
✓ Manual and semi-automated workstations

Why Partner With Us?

• Expertise in PEEK fixture component machining
• Multi-color PEEK material sourcing (beige, black, ceramic white)
• Precision hole patterning for fixture alignment
• Contour milling for custom part profiles
• Fast prototyping to production scaling
